Description

Transporting flammable liquids requires a trailer that prioritizes safety and durability above all else. Our 42000L fuel tank trailer is engineered to meet these demands, providing a secure and efficient way to deliver your liquid cargo. This trailer isn’t just a container; it’s a meticulously crafted piece of equipment designed to protect your investment and ensure a smooth journey from origin to destination.

42000L fuel tank trailer Specifications

Feature:	Carry fuel, oil, diesel, etc.
42000L fuel tank trailer dimension:	Approx. 1170025003800 mm (42,000 L)
Material:	Carbon Steel
Compartment:	6
Capacity (kgs):	42,000 L
Tare weight (kgs)	9200 kg
Tire size	385/65R22.5,
Rim size	11.75*22.5
Axle	13 Ton FUWA brand, 3 pcs
Suspension	Airbag suspension, Fuwa brand
Manhole:	Aluminum alloy 500mm manhole with aluminum alloy cover; with breather valve;
Discharge Valve	Aluminum alloy discharge valve with cover
Foot Valve	Pneumatic control DN80 aluminum alloy foot valves
Pneumatic Control system	1 set of Pneumatic Control combined switches, 1 unit emergency switch
Discharge Hose	2 units 3”×6M factory PVC hose with quick coupling on both ends
Vapor Recovery & Overfill system	Without
Fire Extinguisher Carrier	2 units at the left of rear of the tanker include 2 units 8kg dry powder type fire extinguisher inside

42000L fuel tank trailer Image

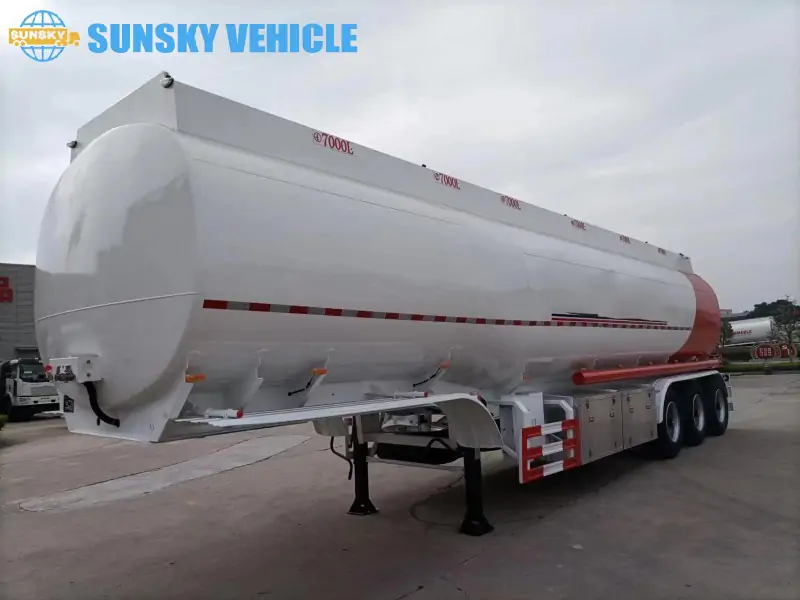

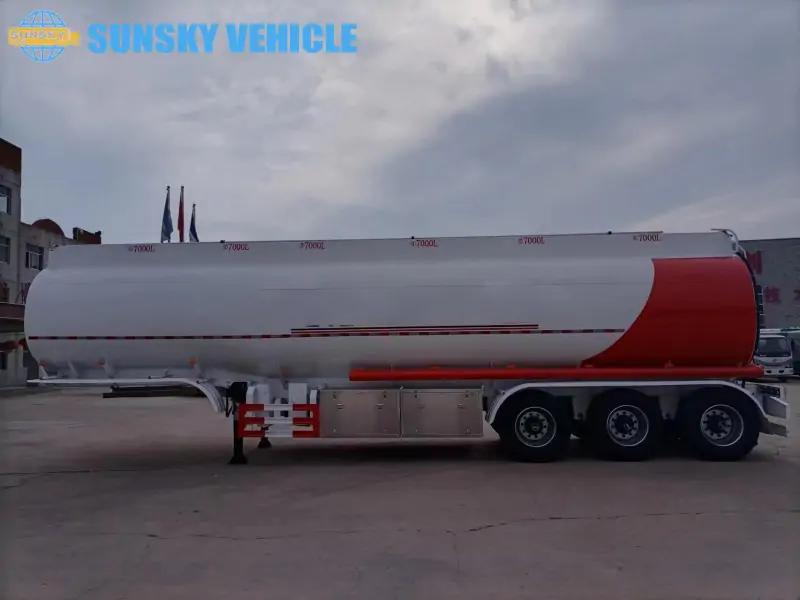

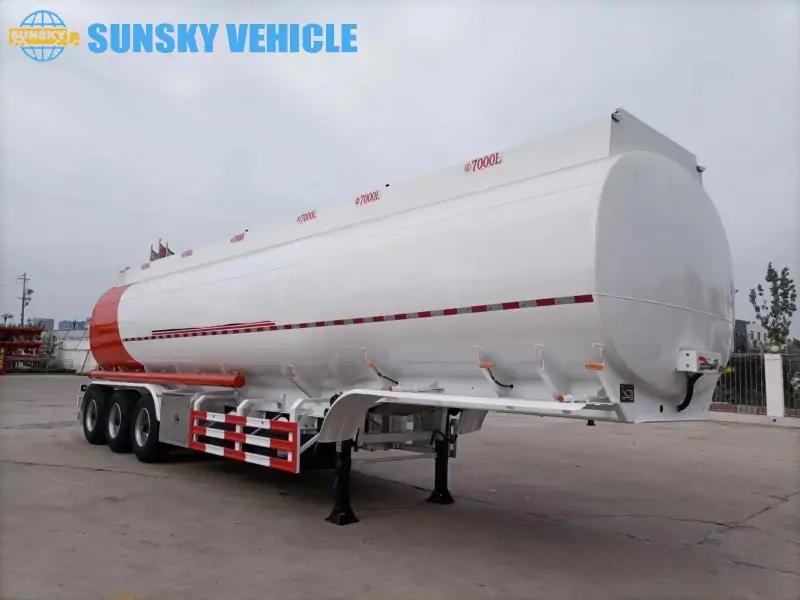

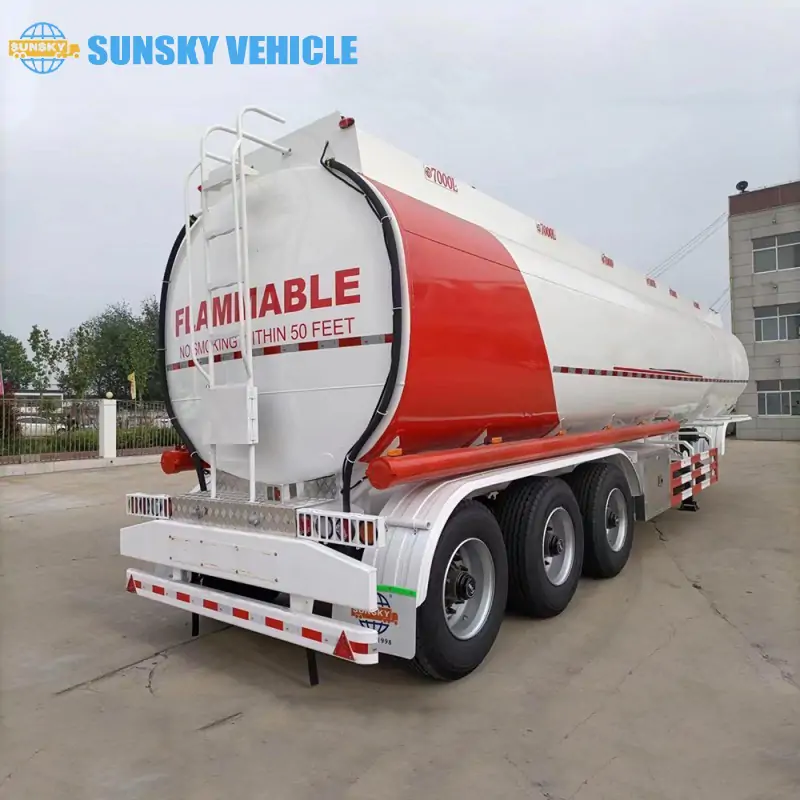

42000L fuel tank trailer complete trailer

42,000L fuel tank trailer complete trailer

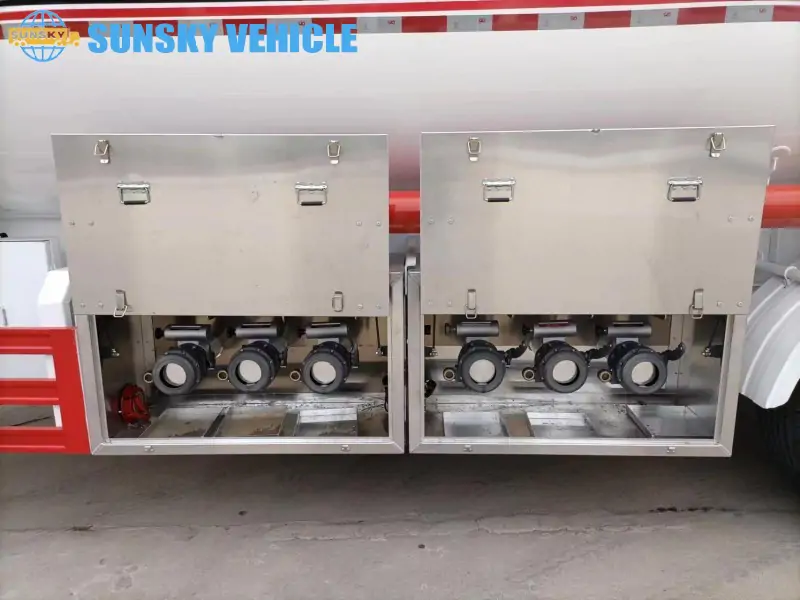

42000L Fuel Tank Trailer Discharge valve

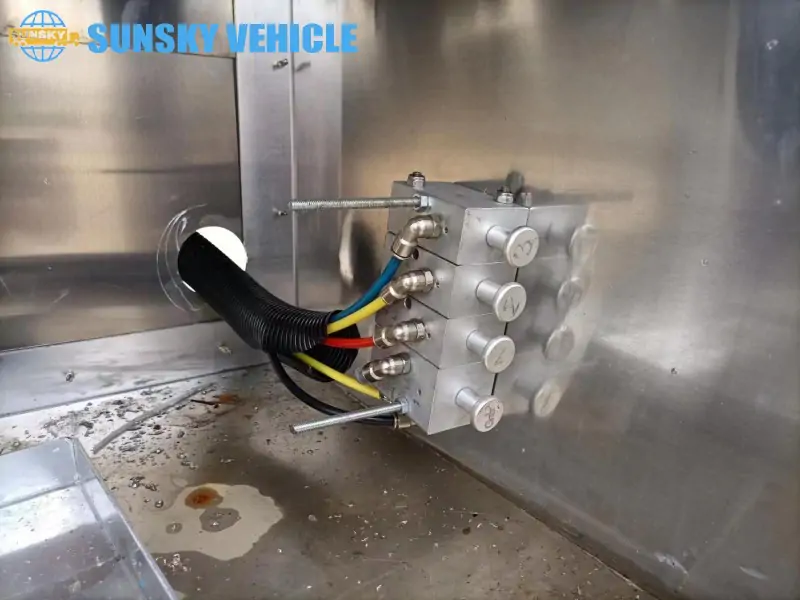

42000L Fuel Tank Trailer Pneumatic combination switch

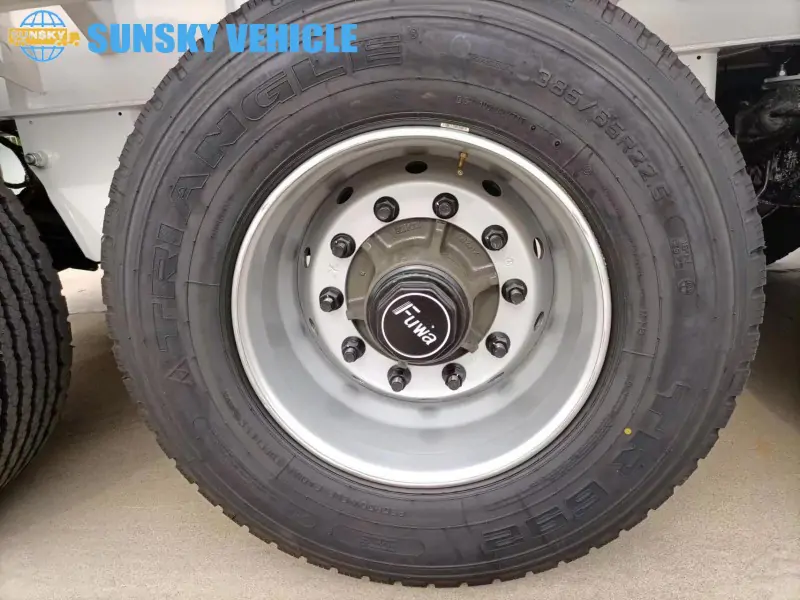

42000L fuel tank trailer tire

42,000L fuel tank trailer tire

Why Choose Our 42000L Fuel Tank Trailer?

Unmatched Safety and Control for Your Fuel Tank Trailer
Safety is non-negotiable when dealing with fuel. Our trailer is equipped with a range of advanced safety features to give you peace of mind. The pneumatic control system includes a combined switch and an emergency switch, providing precise and immediate control over tank operations. For fire safety, we’ve included two units of 8kg dry powder type fire extinguishers in carriers located on the left side of the rear of the tanker. Additionally, the dual-line brake system, featuring an RE-6 emergency relay valve, a T30/30 air chamber, and a 46L air tank, ensures reliable stopping power in any situation.

Designed for Durability and Performance
The core of our fuel tank trailer is its rugged construction. The carbon steel tank is divided into six compartments, allowing for the transport of different types of fuel or for easier load management. The trailer is supported by three 13-ton FUWA brand axles and an airbag suspension system, also from the reputable FUWA brand, ensuring stability and a smooth ride. The tires are high-quality 385/65R22.5 Triangle brand, with a total of eight pieces, including two spares, to keep you on the road. The S.A2.5 standard sandblasting with zinc-rich and polyurethane painting provides a long-lasting, anti-corrosion finish.

Efficient Loading and Unloading with a Smart Fuel Tank Trailer
Efficiency is key to profitability. Our trailer is designed for quick and safe operations. The top of the tank features aluminum alloy φ500 mm (20”) manholes with covers and breather valves, making access easy and safe. For discharge, it uses aluminum alloy discharge valves with covers and pneumatically controlled DN80 aluminum alloy foot valves. We also provide two units of 3”×6M factory PVC hoses with quick couplings, ready for immediate use. All these features work together to streamline your workflow and minimize downtime.

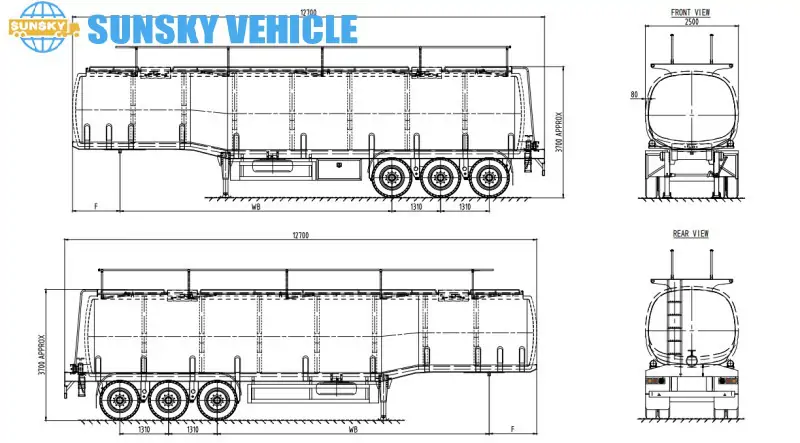

42000L fuel tank trailer draw

fuel tank trailer draw

Ready to Upgrade Your Fleet?

Our fuel tank trailer offers the perfect combination of capacity, durability, and safety for your liquid transportation needs. From small-scale fuel delivery to large-scale logistics, this trailer provides the reliability you need to grow your business.

Video of fuel tank trailer

1. What is a tank semi-trailer?
A tank semi-trailer, also known as a tank trailer or liquid transporter, is a specialized vehicle designed for transporting liquids, gases, or powdered materials. Its main body is a sealed tank, typically made of carbon steel, stainless steel, or aluminum alloy, designed to safely carry and transport a variety of media.

2. What media do tank semi-trailers primarily transport?
A tank semi-trailer can transport a variety of media, depending on the tank material and design. Common transported media include:
Liquid fuels: gasoline, diesel, kerosene, etc.
Chemical liquids: corrosive liquids such as sulfuric acid, hydrochloric acid, and liquid caustic soda.
Edible liquids: milk, cooking oil, etc.
Liquid gases: liquefied petroleum gas (LPG), liquefied natural gas (LNG), etc.
Bulk powders: cement, fly ash, flour, etc.

3. What materials are available for tank semi-trailers, and how do I choose one?

Common tank materials include:
Carbon steel: Low cost, suitable for transporting non-corrosive liquids such as gasoline and diesel.
Stainless steel: Highly corrosion-resistant, suitable for transporting chemicals, edible liquids, and other media with high hygiene requirements.
Aluminum alloy: Lightweight, it effectively reduces vehicle weight and increases payload. It also offers excellent corrosion resistance and is a future trend.
When choosing a tank material, consider the nature of the transported medium (corrosive, flammable, explosive, or hygiene-related) and your budget.

4. What safety features are included in a tank trailer?
Due to the unique characteristics of the transported medium, the safety features of a tank trailer are crucial. Key safety features include:
Surfboard: A surfboard is installed inside the tank to reduce sloshing during operation and improve vehicle stability.
Safety valve and breather valve: Automatically open when the pressure inside the tank is too high or too low, maintaining pressure balance inside and outside the tank and preventing deformation. Static Grounding Device: Used to dissipate static electricity during loading and unloading operations, preventing sparks, especially when transporting flammable or explosive liquids.
Overflow Probe: Monitors the liquid level during loading to prevent spills.
Emergency Shut-Off Valve: In an emergency, quickly disconnects the tank from the outside to prevent leakage.

5. What Information Do I Need to Provide When Purchasing or Customizing a Tank Trailer?
To ensure that your customized tank trailer fully meets your needs and safety standards, you will need to provide the following key information:
Transported Medium: Specify the specific liquid, gas, or powder being transported.
Volume Requirement: Determine the tank’s capacity in cubic meters.
Axle Count and Load Capacity: Determine the number of axles required and the total load capacity in tons.
Tank Material Requirements: Choose between carbon steel, stainless steel, or aluminum alloy, depending on the properties of the medium.
Other Special Requirements: For example, whether insulation, heating, pumping systems, or compartments are required.
