Name: 40FT Chassis Trailer
Price: 9800
Availability: InStock

Description

Our 80 ton lowbed trailer is engineered for the toughest jobs, providing a reliable and safe solution for transporting heavy machinery and oversized cargo. Featuring a robust main frame of high-strength steel and a dependable airbag suspension system, this trailer is designed for superior performance and longevity on the road.

80 Ton Lowbed Trailer Specifications

Feature:	Carry bulk cargo, equipment, etc.
80 Ton Lowbed Trailer Dimension:	17000x2900x3450 mm
Thickness of floor:	4 mm
No. of axles:	4
Payload (kgs):	50000
Tare weight (kgs):	14000
Tire size:	245/75R17.5 tires
Rim size:	7.5*17.5
Axle:	SUNSKY Axle 13 Tons*4
Suspension	Airbag suspension with first and second axles lifting function
Ramp	Spring ramp
Painting:	Two coats of anti-corrosion primer; one coat of finish painting
Accessory:	One toolbox; one set of standard tool

80 Ton Lowbed Trailer Image

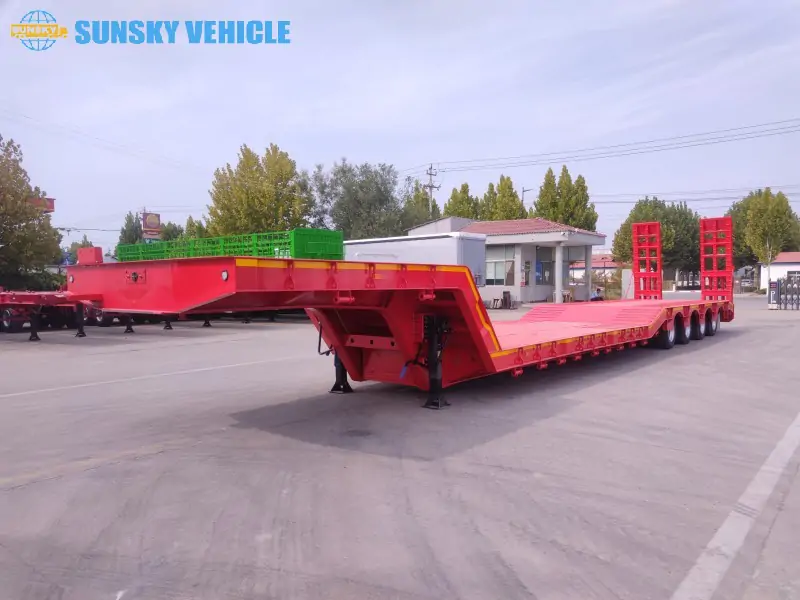

80 Ton Lowbed Trailer complete trailer

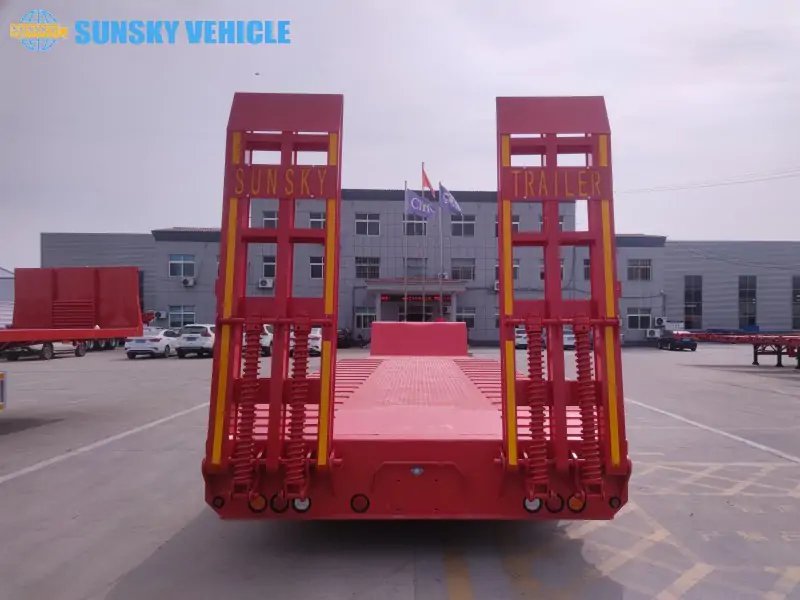

80 Ton Lowbed Trailer tail structure

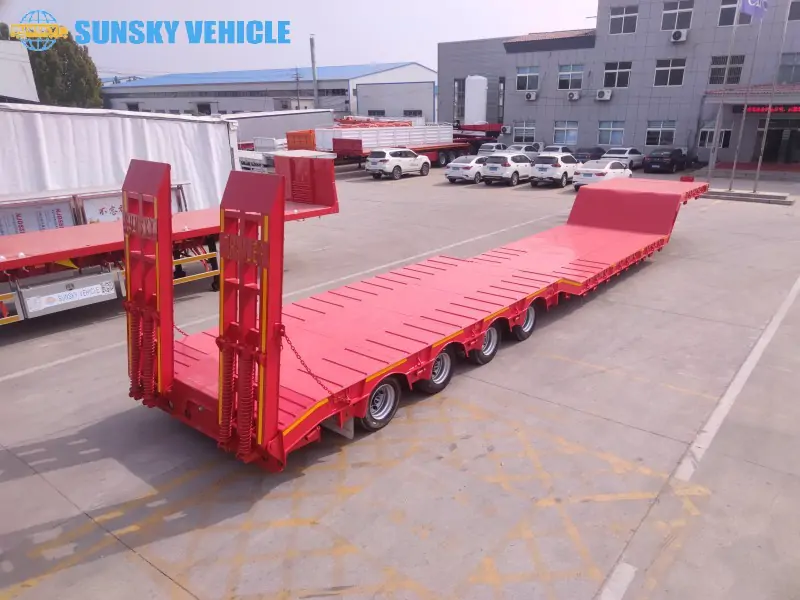

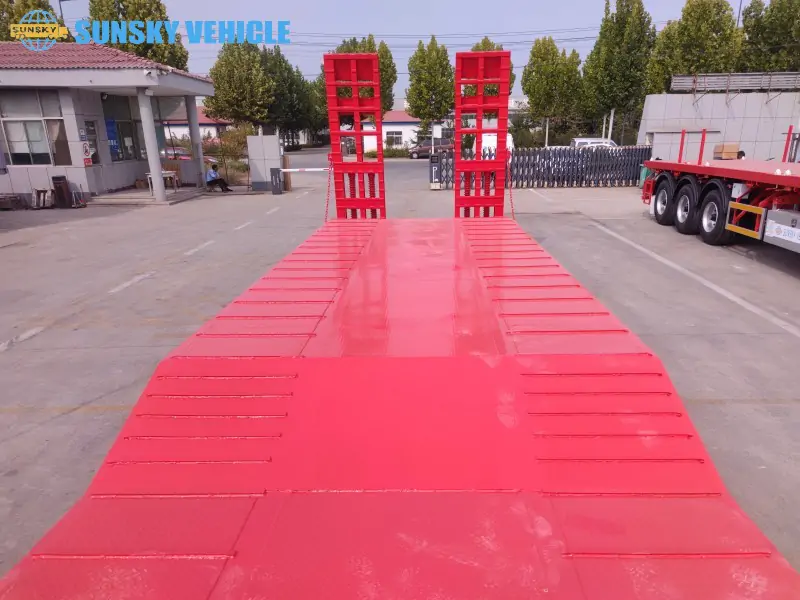

80 Ton Lowbed Trailer platform

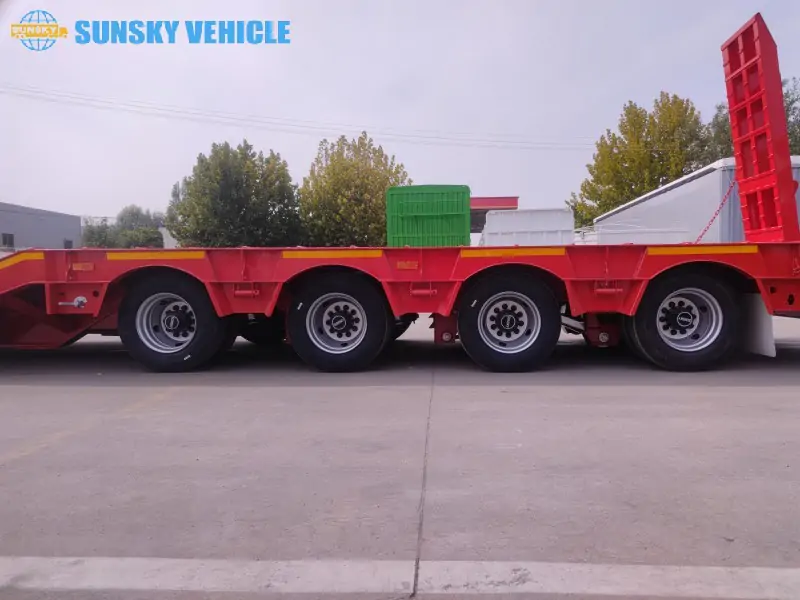

Dropside Semi Trailer tire and suspension

Why Choose Our 80 Ton Lowbed Trailer？

Built to Last: The Backbone of Our 80 Ton Lowbed Trailer
When it comes to hauling heavy machinery, the structural integrity of the trailer is paramount. That’s why our lowbed trailers are constructed with a heavy-duty, extra-durability main frame. We use high-tensile, low-carbon alloy Q345B steel, a material renowned for its strength and resilience. The I-beam is meticulously welded using an automotive arc-submerge process and features a top thickness of 16mm, a middle web of 12mm, and a bottom thickness of 18mm, with a width of 200mm. The side beam is a 250mm high “I” type beam, further enhancing the trailer’s stability and load-bearing capacity. This robust design ensures your 80 ton lowbed trailer can withstand the stresses of heavy-duty hauling for years to come.

Superior Performance & Unmatched Reliability
Safety and operational efficiency are at the core of our design. The trailer is equipped with a dual-line brake system featuring an RE-6 emergency relay valve, a T30/30 air chamber, and a 46L air tank, ensuring reliable stopping power under all conditions. With a payload capacity of 50,000 kg and a tare weight of 14,000 kg, this trailer is perfectly balanced for a maximum 80 ton capacity, offering you a powerful solution for transporting even your heaviest loads.

Advanced Suspension and User-Friendly Features
Our 80 ton lowboy trailer is equipped with an airbag suspension system that includes a lifting function for the first and second axles. This advanced feature provides a smoother ride, protects your cargo, and offers greater flexibility for navigating various road conditions. For added convenience, a spring ramp is included, making it easy to load and unload heavy equipment. We also provide a toolbox and a set of standard tools as accessories.

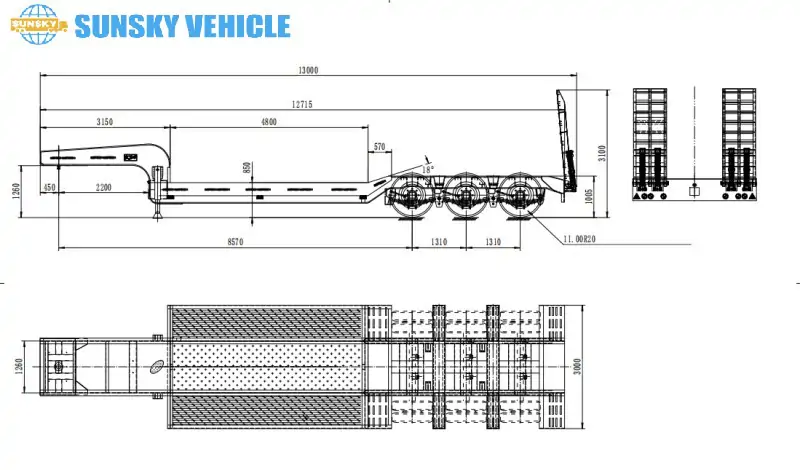

80 Ton Lowbed Trailer draw

lowbed-trailer-draw

Ready to Transport Your Heavy Machinery?

Our 80 ton lowbed trailer is the ideal choice for construction companies, heavy equipment rental businesses, and logistics providers who need a reliable and durable solution for their toughest transportation challenges. Don’t compromise on safety and performance. Invest in a trailer that’s built for the long haul.

Video of lowbed trailer

1. What is a lowbed semi-trailer, and how does it differ from a regular semi-trailer?
A lowbed semi-trailer, also often called a low-bed trailer or low-bed truck, is a type of semi-trailer specifically designed for transporting heavy machinery, construction equipment, and extra-high cargo. Its most distinctive feature is its cargo bed (i.e., load surface) that is very low to the ground. Compared to regular semi-trailers, lowbed semi-trailers have a lower center of gravity, making them safer and more stable when transporting extra-high and extra-heavy cargo.

2. What cargo are lowboy semi-trailers primarily used to transport?
Lowbed semi-trailers are primarily used to transport cargo that cannot be transported using regular trucks or containers due to size or weight restrictions. Common cargo types include:
Large construction machinery, such as excavators, bulldozers, loaders, and road rollers.
Agricultural machinery: such as large combine harvesters and seed drills.
Industrial equipment: such as transformers, large boilers, and generator sets.
Special vehicles: such as crawler cranes and large drilling rigs.

3. How do I choose the right lowbed semi-trailer?
When choosing a lowbed semi-trailer, consider the following key factors:
Load Capacity: Choose the appropriate load capacity based on the maximum weight of the cargo you intend to transport.
Dimensions: The length, width, and height of the cargo bed must be able to accommodate your cargo.
Number of Axles: The more axles, the greater the load capacity and the less pressure on the road. Choose a model with two, three, four, or more axles depending on the cargo weight.
Suspension System: Common suspension systems include mechanical and air suspension. Air suspension provides better shock absorption and is more suitable for transporting precision equipment.
Loading and Unloading Method: Consider the ease of loading and unloading cargo. Some lowbed semi-trailers feature a gooseneck design that can be detached from the front, making it easier for equipment to be loaded and unloaded.

4. What technical specifications should I consider when purchasing a lowbed semi-trailer?
In addition to the above factors, you should also pay attention to the following technical specifications:
Main Beam Material: High-quality, high-strength steel (such as Q345B) ensures the strength and durability of the frame. Tire Type and Quantity: Select the appropriate tire size and ply rating, as well as the number of spare tires, based on load requirements.
Braking System: Ensure the braking system is reliable and meets safety standards.
Electrical System: Check that the lighting and wiring meet standards to ensure safe nighttime driving.
Optional Features: Choose hydraulic ladders, retractable features, side guardrails, and other features as needed.

5. Are there any special requirements for operating a lowbed semi-trailer?
Operating a lowbed semi-trailer requires an A2 or higher driver’s license. Due to the vehicle’s large length, width, height, and weight, drivers must be experienced and exercise extreme caution when turning, reversing, and maneuvering in narrow roads. Furthermore, transporting oversized cargo may require an overweight transport permit.
