Name: 40FT Chassis Trailer
Price: 9800
Availability: InStock

Description

Engineered for the safe and reliable transport of corrosive materials, our acid tanker trailer is built with high-grade stainless steel. With a robust 3-axle design and 18 cbm effective capacity, it’s the ultimate solution for your bulk acid transport needs.

Acid Tanker Trailer Specifications

Style	18 cbm 3-axle V-shaped stainless steel acid Tank Semi-trailer
The thickness of tank	6 mm stainless steel for shell; 8 mm for dish.
Acid Tanker Trailer Dimension:	1190025003500 mm
Payload (kgs):	30000
Tare weight (kgs):	8000
Effective capacity:	18 cbm
Medium:	acid
Kingpin	3.5” bolt-in
Landing gear	19”
Tire size	12R22.5
Rim size	9.00*22.5
Axle	FUWA brand-13 Ton
Leaf springs	Steel suspension
Discharge valve	3” or 4”
Prime & Topcoat painting	Zinc-rich & Polyurethane painting

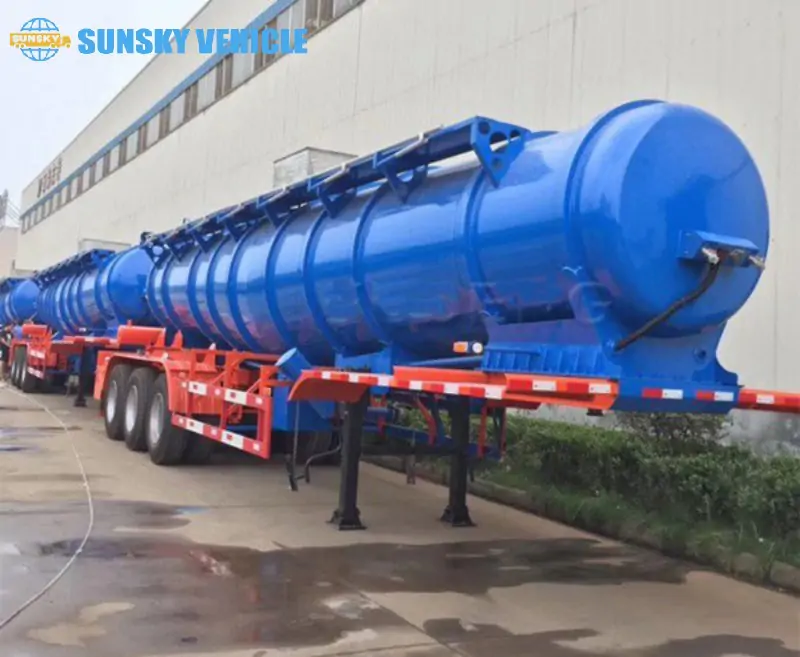

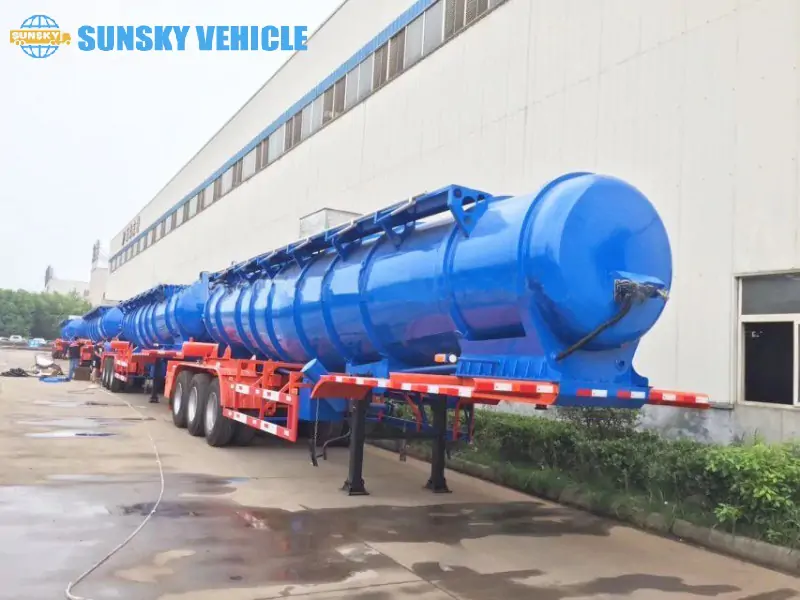

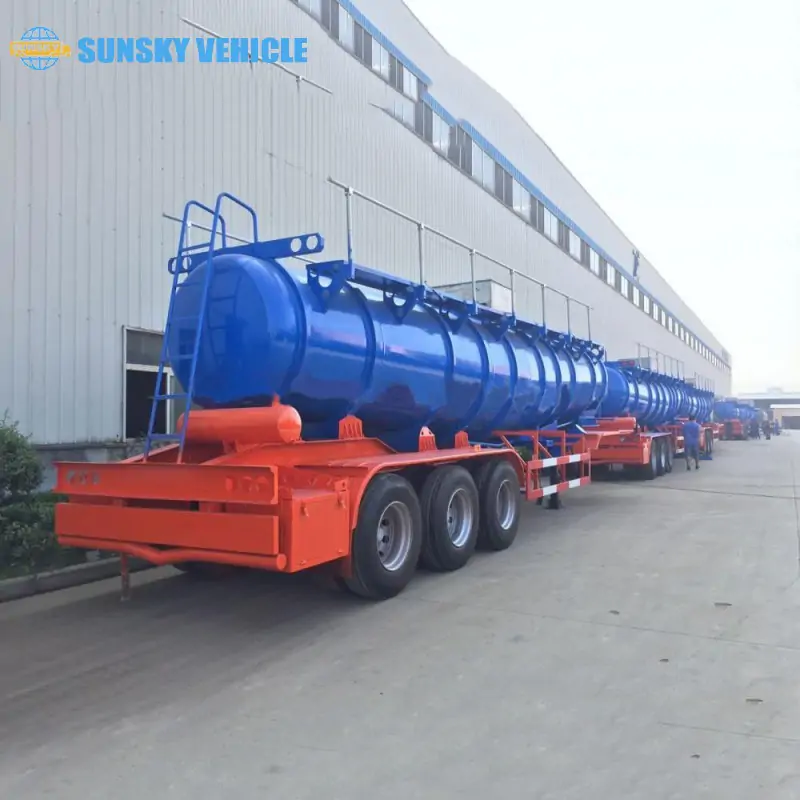

Acid Tanker Trailer Image

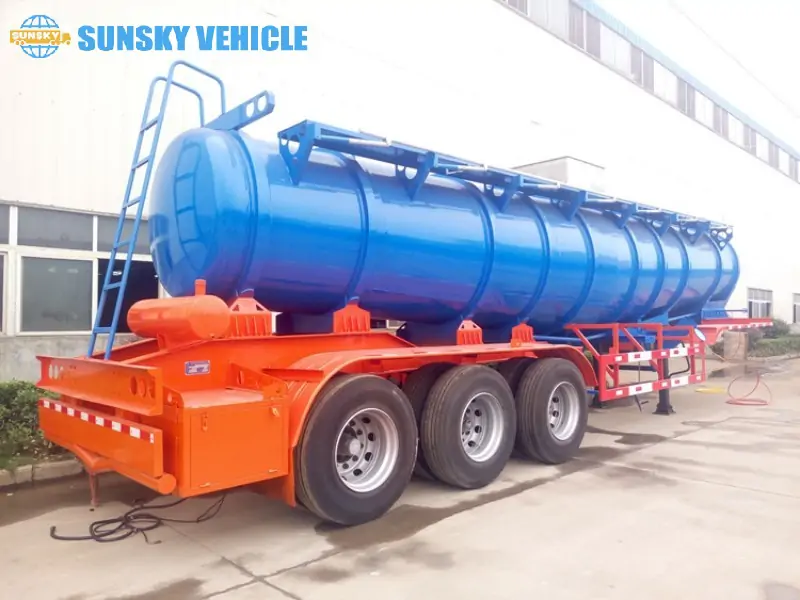

Acid Tanker Trailer complete trailer

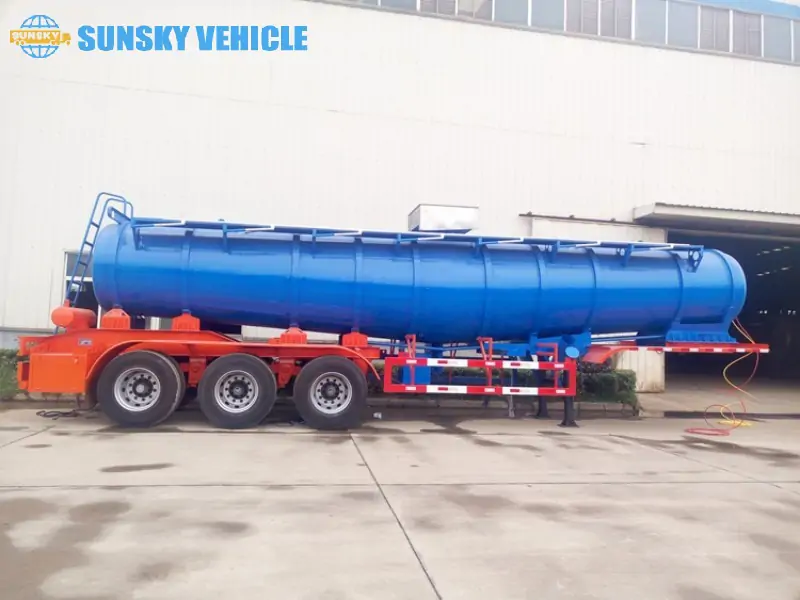

Acid Tanker Trailer side view

Why Choose Our Acid Tanker Trailer?

Engineered for Corrosive Cargo
Transporting corrosive liquids like acid requires specialized equipment that prioritizes safety above all else. Our chemical tanker trailer is constructed from high-grade stainless steel, ensuring exceptional resistance to corrosion. The tank shell features a 6mm thickness, while the dish is an even stronger 8mm, providing a formidable barrier for secure containment. This durable build, combined with a specialized zinc-rich & polyurethane painting, protects the trailer’s exterior and guarantees long-term performance in the harshest environments.

Advanced Design for Safety & Efficiency
Our acid tanker trailer features a unique V-shaped design, which is not only structurally sound but also allows for more efficient and complete discharge of the liquid. With a payload capacity of 30000 kgs and an effective capacity of 18 cbm, this trailer maximizes your transport efficiency on every trip. Measuring 11900mm in length and 2500mm in width, it provides a stable and secure platform for your cargo. The trailer is also equipped with 3 or 4 discharge valves for flexible and controlled unloading.

High-Performance Components for Ultimate Reliability
We believe a trailer is only as strong as its components. That’s why we rely on trusted, high-quality brands to build our acid tanker trailers. The axles are from FUWA, a leading manufacturer of durable components. The dual-line brake system is equipped with a WABCO Re-6 emergency relay valve and MBA T30/30 air chambers, ensuring superior stopping power and safety. The trailer runs on 13 sets of 12R22.5 tires, providing robust support and stability on the road. This commitment to quality components guarantees our trailers are built to last and perform under pressure.

Get a Custom Quote on Your Acid Tanker Trailer

Don’t compromise on safety or efficiency. Our stainless steel acid tanker trailer is the reliable solution for your corrosive liquid transport needs.

Contact our expert team today to discuss your specific requirements and get a personalized quote on a trailer that’s built for your business.

Video of acid tank trailer

What materials are used to build an acid tank trailer, and why?
Acid tank trailers, or chemical tankers, are constructed from specialized materials to safely contain highly corrosive substances. The most common material is high-grade stainless steel, with different grades (like 304 or 316) chosen based on the specific type of acid being transported. The selection is critical to prevent chemical reactions that could lead to leaks or structural failure. For certain chemicals, other materials like carbon steel with specific internal linings or fiberglass-reinforced plastics (FRP) might be used. The construction involves a thicker-than-average shell and dish, ensuring the tank can withstand the internal pressure and the corrosive nature of the cargo, providing a robust and safe vessel for corrosive liquid transport.

What key safety features are essential for an acid tanker trailer?
Safety is the highest priority for an acidic cargo trailer. A key feature is the multi-stage safety system, including pressure relief valves and emergency shut-off valves, which prevent over-pressurization and allow for rapid containment in an emergency. The tank’s design often includes a spill coaming around the manholes to contain any spills during loading. Advanced braking systems, like anti-lock braking (ABS) and electronic stability control (ESC), are crucial for ensuring the trailer remains stable, especially with shifting liquid loads. Additionally, robust lighting systems, reflective markings, and a rollover stability system are vital for visibility and control on the road.

How are acid tank trailers designed for efficient and safe unloading?
The design of an acid tank semi-trailer is optimized for both safety and efficiency during discharge. Many models feature a specific shape, like a V-shape or conical bottom, which utilizes gravity to ensure a complete and residue-free unload. The discharge valves and piping are typically located at the bottom of the tank, equipped with remote controls to keep the operator at a safe distance from the hazardous cargo. These systems are carefully sealed to prevent leaks and spills. This combination of gravity-assisted design and controlled discharge mechanisms is essential for reducing unloading time while ensuring the safety of personnel and the environment.
