Name: 40FT Chassis Trailer
Price: 9800
Availability: InStock

Description

Our asphalt trailer is engineered for the safe transport of hot liquid asphalt and bitumen. With a massive 40,000L capacity and an advanced heating system, it is the reliable solution for maintaining liquid temperatures over long distances, ensuring your cargo arrives ready for immediate use.

Asphalt Trailer Specifications

Feature:	Carry asphalt, bitumen
Asphalt Trailer Dimension:	1200025003400 mm (40,000 L)
Material:	Carbon Steel
Capacity (kgs):	40,000 L
Tare weight (kgs):	12,600 kg
Thickness	5mm for the shell and 6mm for the dish. 0.8mm stainless steel on the surface of insulation layer
Kingpin	Fuwa brand bolt-in 2”
Landing gear	JOST brand 19”
Tire size	12R22.5
Rim size	8.25*22.5
Axle	FUWA-13T 4 Axle
Leaf springs	Spring suspension
Manhole:	2 sets, 20 inch
Heating system	With one burner
Insulation layer:	With glass fiber insulation

Asphalt Trailer Image

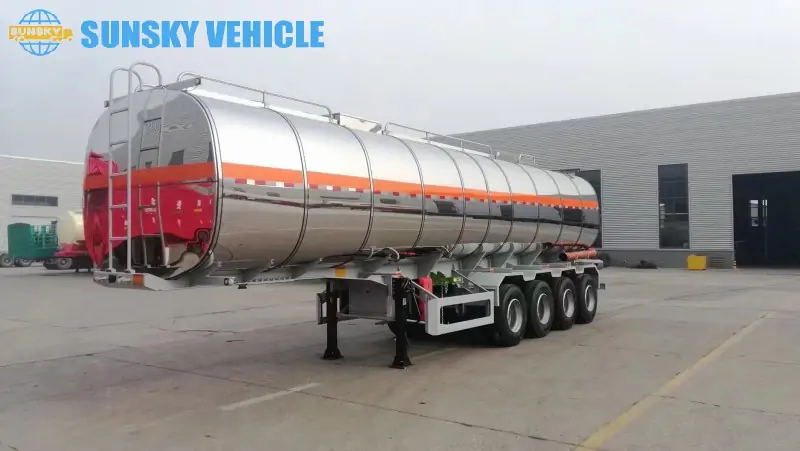

Asphalt Trailer complete trailer

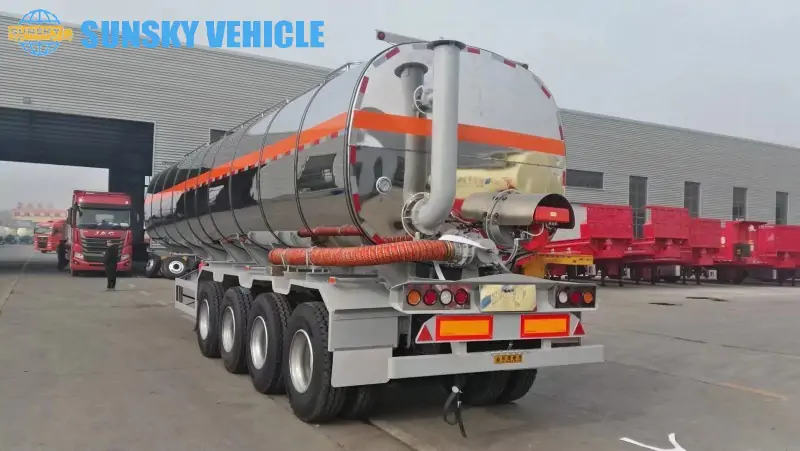

Asphalt Trailer tail structure

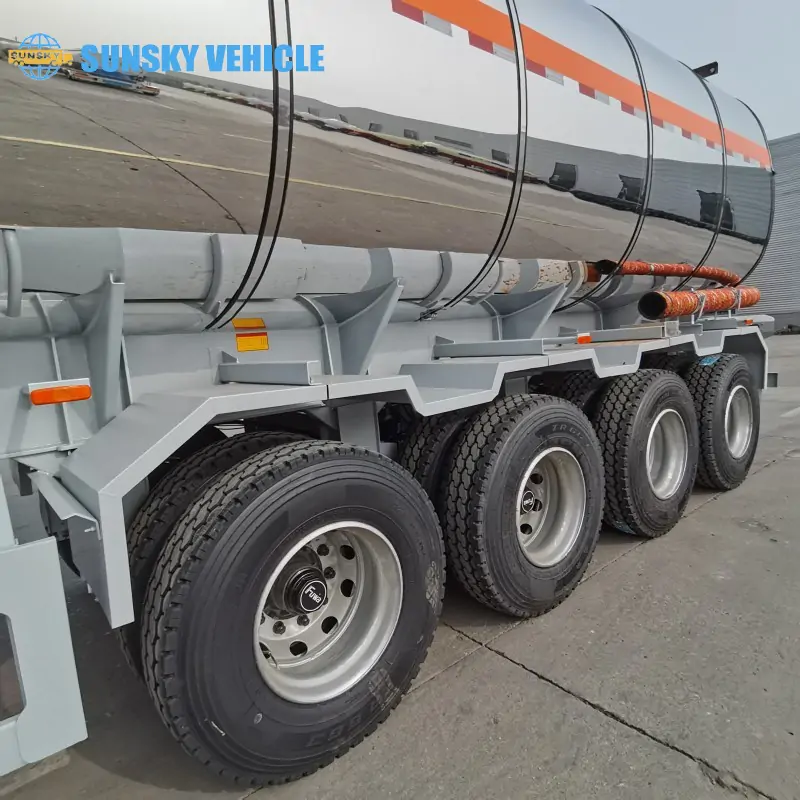

Asphalt Trailer tire

Why Choose Our Asphalt Trailer?

Engineered for High-Temperature Transport
Transporting asphalt and bitumen requires specialized equipment that can maintain high temperatures without compromising safety or efficiency. Our bitumen trailer is constructed from durable carbon steel with a robust design. The tank shell is 5mm thick, and the dish is an even stronger 6mm, providing a secure containment for your cargo. The tank is equipped with an integrated heating system, featuring a powerful burner to ensure the temperature of the asphalt or bitumen remains consistent throughout the journey.

Advanced Insulation for Thermal Efficiency
Keeping your cargo hot and ready is our top priority. Our asphalt transport trailer is built with a highly effective glass fiber insulation layer. To protect this insulation and ensure long-term durability, the surface is covered with a corrosion-resistant 0.8mm stainless steel layer. This dual-layer insulation system minimizes heat loss, reduces fuel consumption, and guarantees your material is delivered at the required temperature, saving you time and money on the job site.

High-Performance Components for Ultimate Reliability
We believe a trailer is only as strong as its components. That’s why we rely on trusted, high-quality brands to build our heated bitumen tankers. The 4-axle design provides superior load distribution and stability. The axles are from the trusted FUWA-13T brand, and the landing gear is from JOST. Our braking system includes a WABCO Re-6 emergency relay valve, ensuring reliable and safe stopping power. This commitment to quality components guarantees our trailers are built to last and perform under the toughest conditions.

Get a Custom Quote on Your Asphalt Trailer

Don’t let logistics challenges compromise the quality of your materials. Our asphalt trailer is the reliable solution for your hot liquid transport needs.

Contact our expert team today to discuss your specific requirements and get a personalized quote on a trailer that’s built for your business.

Video of Asphalt Trailer

How are asphalt trailers designed to maintain cargo temperature?
Asphalt trailers, or heated bitumen tankers, are specifically engineered to keep liquid asphalt and bitumen at a consistent, high temperature during transport. The primary method involves a robust heating system, often using burners or hot oil circulation, to heat the tank. This is paired with an advanced insulation layer, typically made of materials like rock wool or fiberglass, which is applied between the inner tank and the outer shell. This insulation significantly reduces heat loss, ensuring the cargo remains in a liquid state for a seamless discharge at the destination, which is crucial for paving and construction projects.

What are the key safety features on an asphalt tanker?
Safety is the top priority for a liquid asphalt semi-trailer. These trailers are equipped with multiple safety features to prevent accidents and protect operators. Key components include pressure relief valves and robust manhole covers that seal the tank securely. The heating system is designed with safety in mind, often including temperature gauges and automatic shut-off systems to prevent overheating. Furthermore, the tank is constructed from durable carbon steel or other suitable materials and is built on a stable chassis with high-quality braking systems to ensure safe handling on the road, even with a heavy, shifting load.

How is the unloading process handled for an asphalt trailer?
The unloading process for a hot bitumen carrier is designed for speed and efficiency while maintaining temperature. The trailers typically use gravity-assisted discharge, with the tank’s shape and discharge valves optimized for a complete unload without leaving any residue. The discharge system is often located at the bottom of the tank, allowing the liquid to flow out smoothly. Many trailers also come equipped with a discharge pump to assist in the process, ensuring a fast and clean transfer of the liquid asphalt or bitumen from the tanker to the storage or paving equipment at the job site.
