Name: 40FT Chassis Trailer
Price: 9800
Availability: InStock

Description

Our 13-meter curtain side semi-trailer is the ideal solution for efficiently carrying a wide range of bulk cargo. Designed for easy loading and unloading, it provides the flexibility of a flatbed with the weather protection of a dry van, making it a versatile asset for any logistics operation.

Curtain Side Trailer Specifications

Feature:	Carry bulk cargo
Curtain Side Trailer Dimension:	1300025504550mm
Beam Size:	I-beam 5008 mm Top flange: 14 mm 14mm140 Bottom flange: 16140mm With 12mm kingpin board With 10mm gooseneck support With 2.5mm diamond plate floor With 180mm side beam
Payload (kgs):	40000
Tare weight (kgs):	7200
Sidewall:	400 mm
Kingpin:	Bolt-in type 3.5” or 2”
Landing gear:	Two-speed manual operation 19”
Tire size:	315/80R22.5
Rim size:	9.00*22.5 (13 sets)
Axle:	3 Axles, 13 Tons
Suspension	Spring suspension

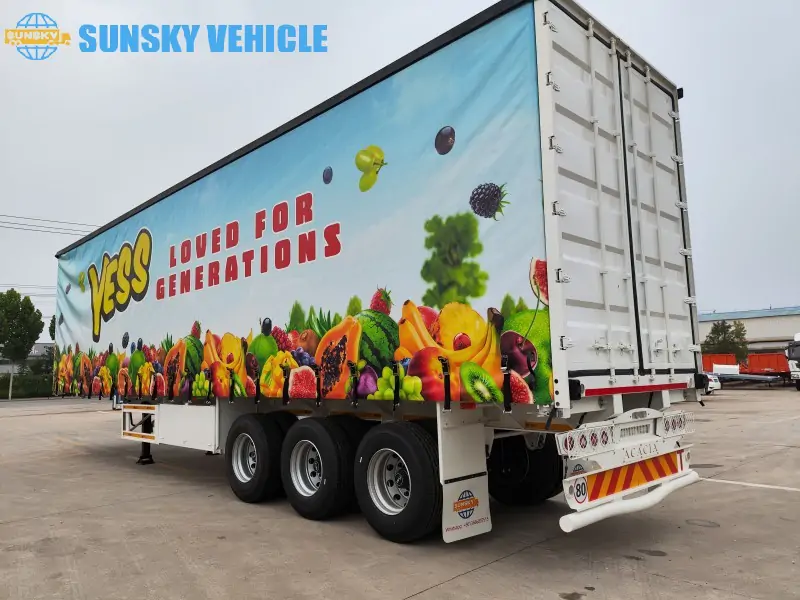

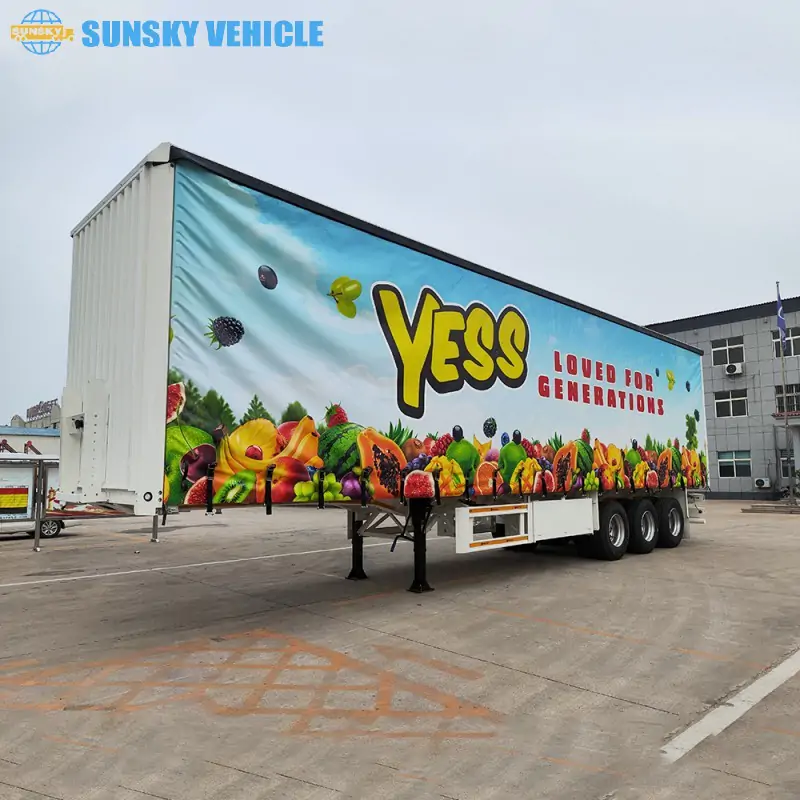

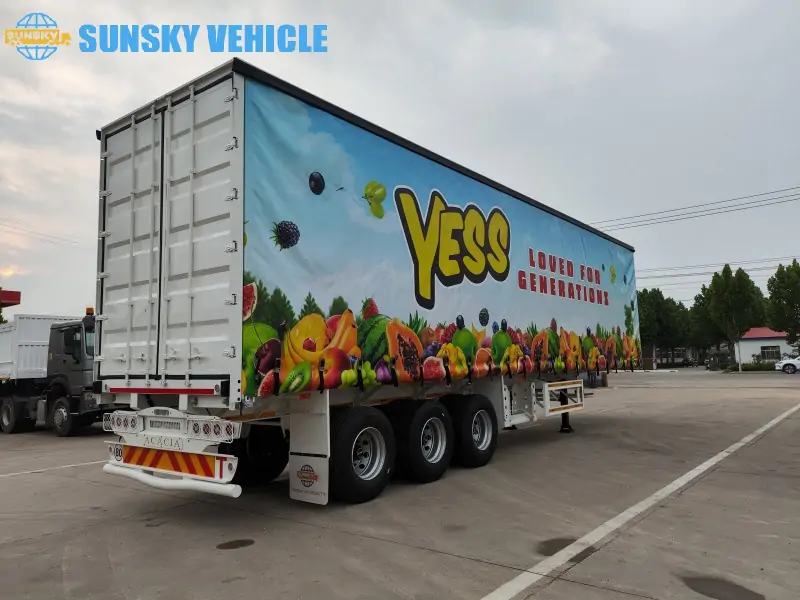

Curtain Side Trailer Image

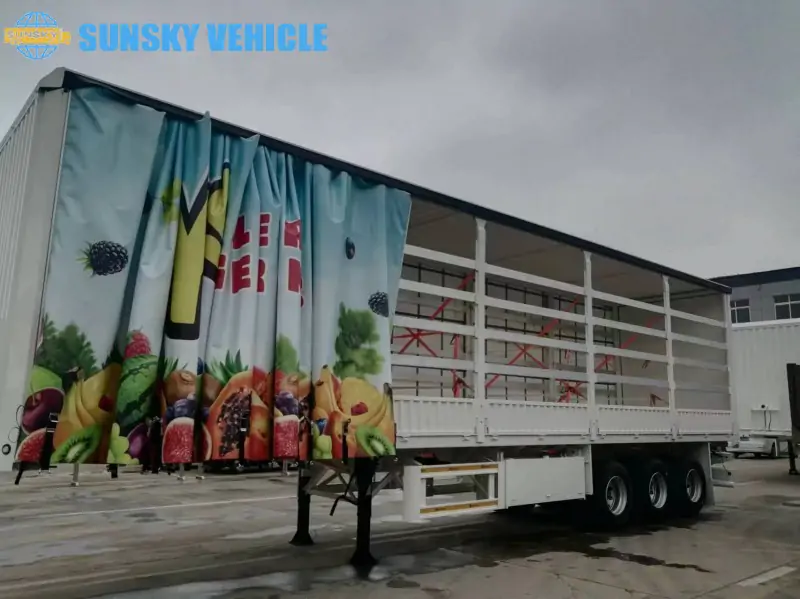

Curtain Side Trailer side view

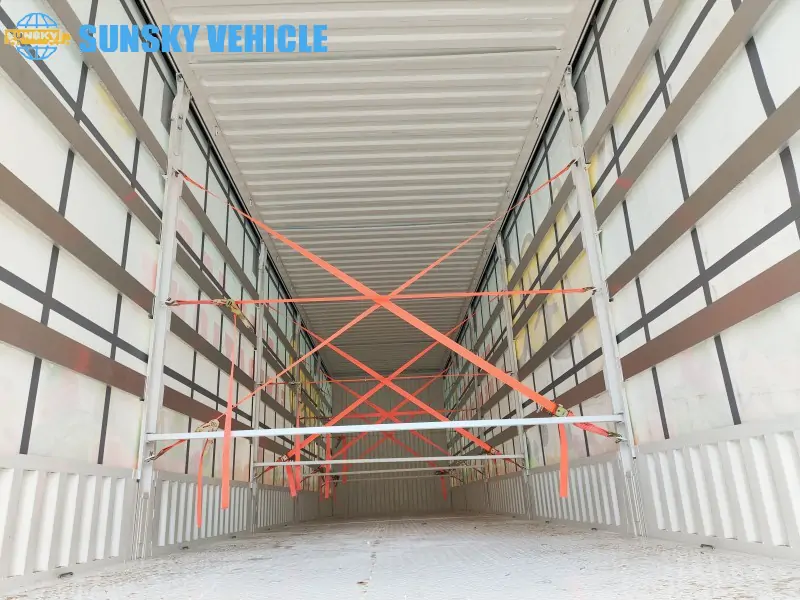

Curtain Side Trailer cargo box

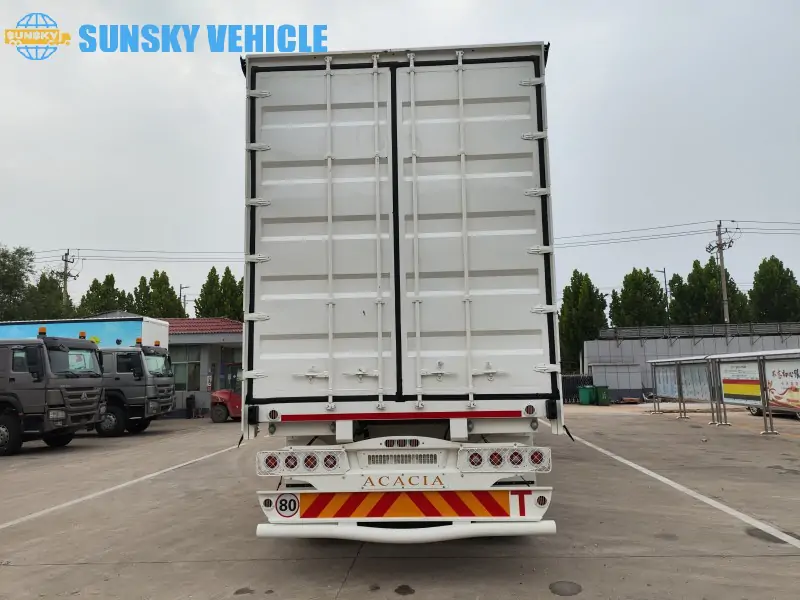

Curtain Side Trailer tail structure

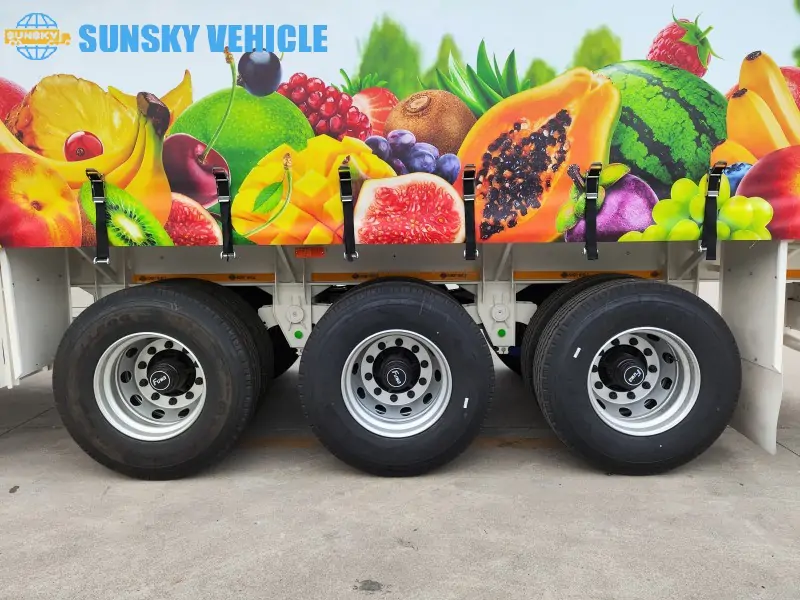

Curtain Side Trailer tire and suspension

Why Choose Our Curtain Side Trailer?

Superior Engineering and Robust Construction of Our Curtainsider Trailer
Our 13-meter curtainsider trailer is built with a heavy-duty I-beam, ensuring a strong and stable foundation. With a payload capacity of 40,000 kgs and a tare weight of 7,200 kgs, this trailer can handle substantial loads with ease. It is equipped with three 13-ton axles and a reliable spring suspension system, providing a smooth and secure ride even on challenging roads.

The Tautliner Trailer: Maximizing Efficiency and Cargo Protection
The key feature of our tautliner trailer is its innovative curtain-side design. This allows for quick and easy loading and unloading from the side, a significant advantage over traditional dry vans that can only be accessed from the rear. This design not only saves time but also provides excellent weather protection for your cargo. The trailer’s side walls are 400mm high, and the diamond plate floor provides a durable surface for your cargo, while the sturdy 180mm side beams add extra structural integrity.

Customizable and Reliable Features for Your Curtain Side Semi Trailer
To meet your specific needs, our curtain side semi trailer is equipped with customizable features. The kingpin is available in a bolt-in type of either 3.5” or 2”. It also comes with two-speed manual operation and 19” landing gear for stable parking and easy detachment. The trailer rolls on high-quality 315/80R22.5 tires with 9.00*22.5 rims, ensuring reliable performance on the road. This combination of robust construction and flexible features makes our trailer a smart investment for any business.

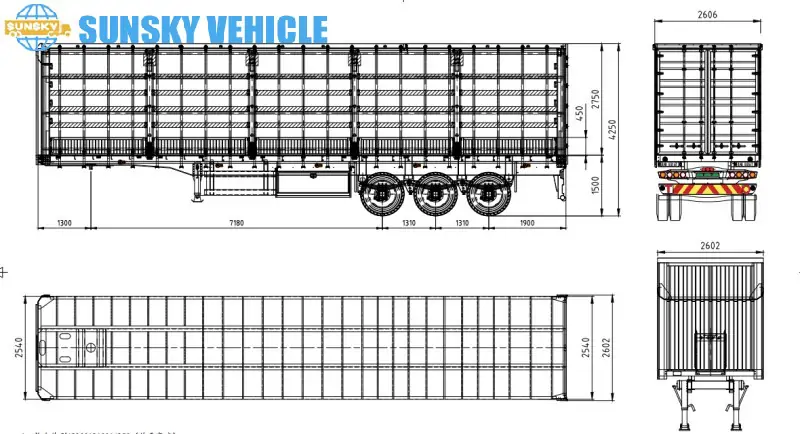

Curtain Side Trailer draw

Ready to improve your logistics? Request a free quote or contact us today to find out more about how our 13-meter curtain side trailer can meet your business needs.

Video of curtain side trailer

What are the advantages of a curtain-side trailer over a traditional van?
A curtain-side trailer combines the advantages of a flatbed trailer and a van, with its greatest advantage being its ease of loading and unloading. You can quickly load and unload cargo from the side of the trailer, which is much more efficient than a traditional van, which can only be loaded and unloaded from the rear. It also provides excellent weather protection for cargo.

What are curtain-side trailers suitable for?
Curtain-side trailers are ideal for various applications requiring flexible loading and unloading, such as transporting palletized cargo, machinery, or large items. Their opening sides allow for convenient forklift access from both sides, making them particularly advantageous when there’s no docking station.

How should I perform routine maintenance on a curtain-side trailer?
Routine maintenance is crucial to ensuring the performance and longevity of a curtain-side trailer. You should regularly inspect the tires, suspension, and brakes. In particular, ensure the curtains and rail system are clean and lubricated to ensure smooth operation. Also, check for damage and repair it promptly to protect cargo from the elements.

Are the curtains on a curtain-side trailer easily damaged?
Modern curtain-side trailers are typically made of high-strength, abrasion-resistant PVC, making them extremely durable. However, they can still be damaged by sharp objects or improper handling. Therefore, regularly inspecting the curtains for tears or holes and promptly repairing them is crucial to maintaining cargo safety and the integrity of the trailer.

How secure are curtain-side trailers?
Curtain-side trailers offer convenient loading and unloading while also ensuring safety. In addition to standard brakes and suspension systems, straps and fasteners on the curtains securely secure cargo. For transporting valuable or sensitive cargo, many trailers are equipped with additional security features, such as container locks, to prevent cargo movement or theft during transit.
