Description
Engineered for maximum hauling capacity, our 7.5-meter full drawbar trailers are the perfect solution for transporting bulk cargo. With a robust payload of 30000kg and a durable build, this trailer is designed to handle demanding logistics and reduce your transportation costs.
Drawbar Trailer Specifications
| Feature: | Carry Bulk cargo |

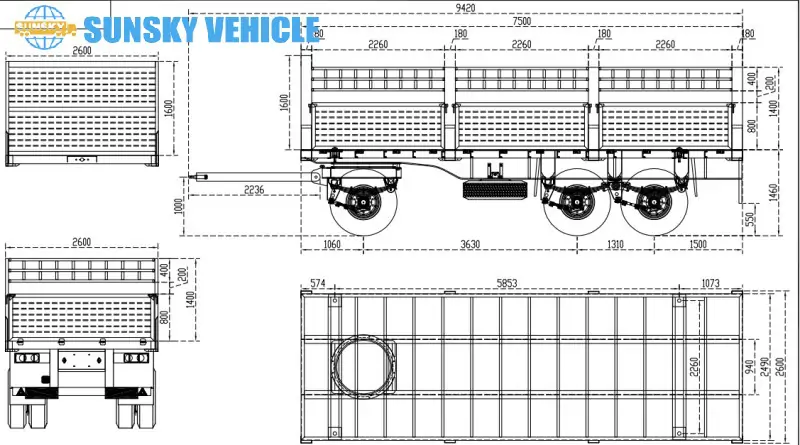

| Drawbar Trailer Dimension: | 7500*2500*800mm |
| Front wall | 800mm side panel + 600mm extra mesh |
| Payload (kgs): | 30000 |
| Tare weight: | 7000 KGS |
| Turntable: | 20 tons |
| Tire size: | Triangle brand 12.00R20 |
| Rim size: | 9.00*20 |
| Axle: | 13T, 3 axles |
| Suspension | 3-axles leaf spring suspension |
| Container locks | 4 (for 1x20GP) |
| Painting: | Two coats of anti-corrosion primer; one coat of finish painting, Color optional |

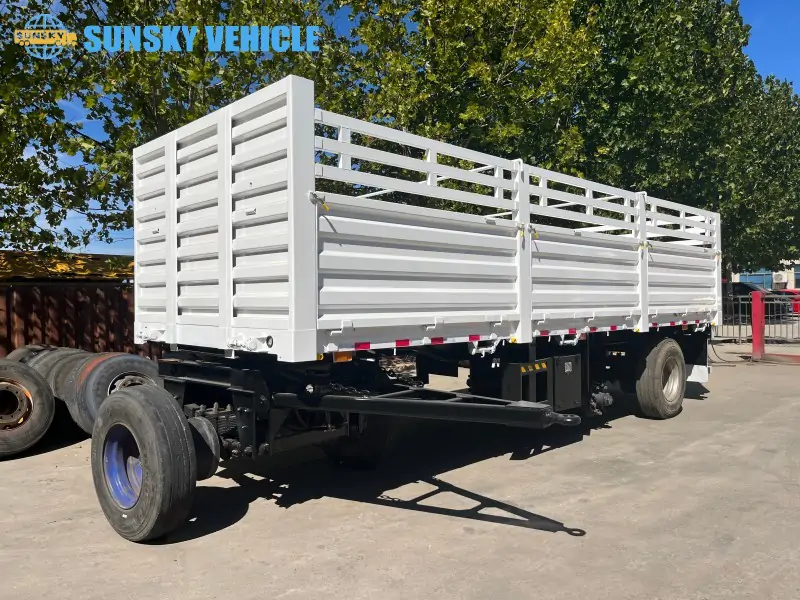

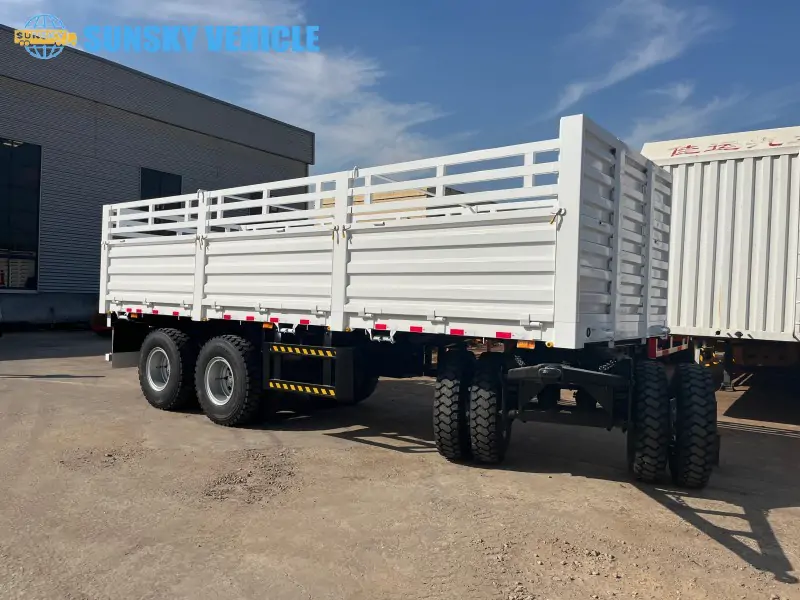

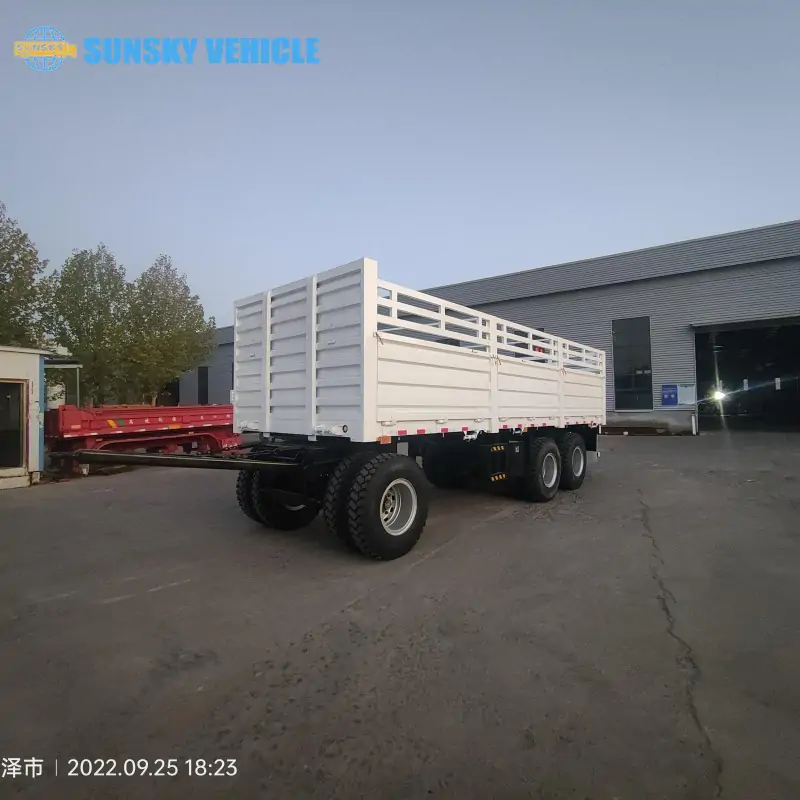

Drawbar Trailer Image

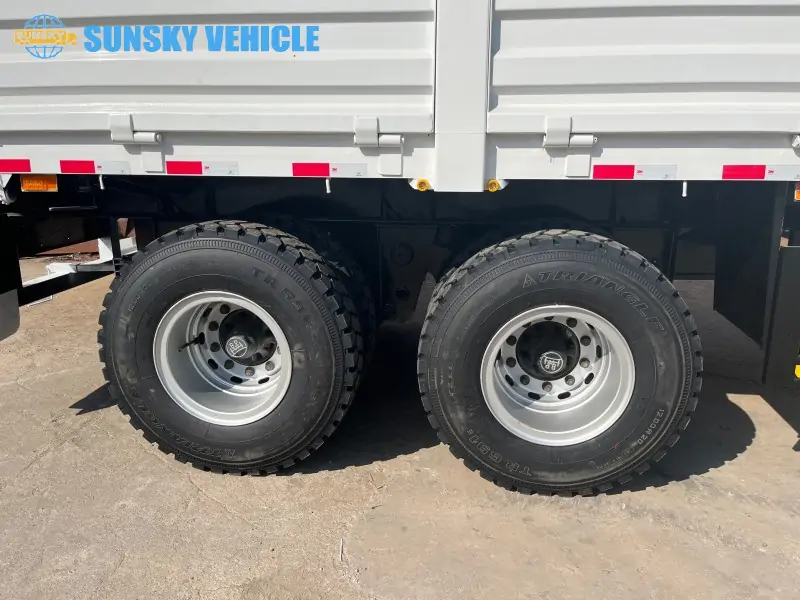

Drawbar Trailer tire

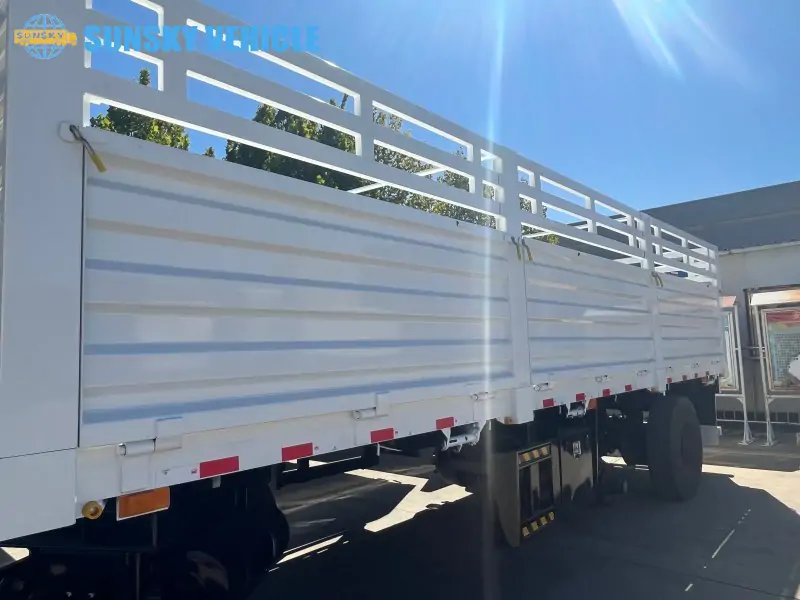

Drawbar Trailer sidewall

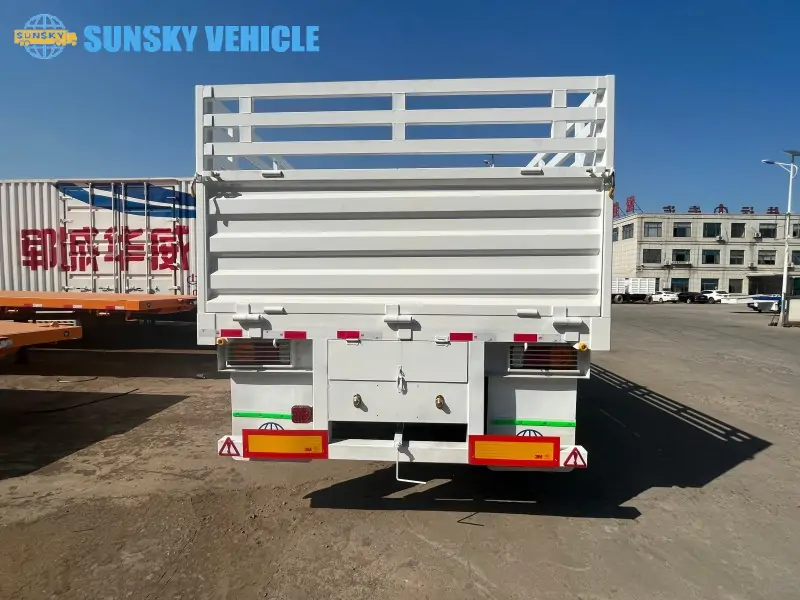

Drawbar Trailer tail structure

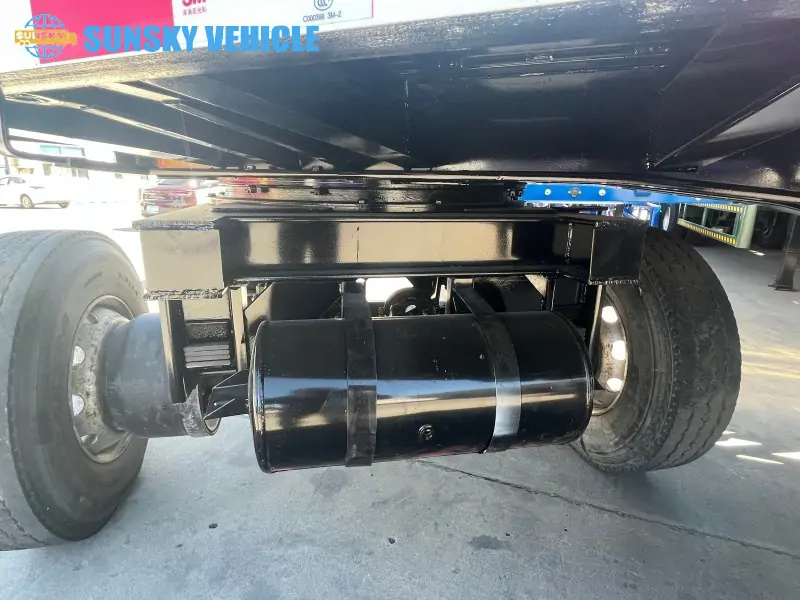

Drawbar Trailer axle
Why Choose Our Drawbar Trailer?
Our full drawbar trailers are built for strength and reliability. The impressive 30000 kg payload capacity and a tare weight of 7000kg demonstrate its powerful hauling capabilities. The trailer is equipped with a 20-ton turntable for smooth and stable turns and features genuine BPW brand 13-ton, 3-axles. A three-axle leaf spring suspension system provides exceptional durability and stability, ensuring a safe and steady ride even under heavy loads.
Versatile Applications and Customizable Full Trailer Features
This drawbar trailer is more than just a cargo hauler; it’s a versatile tool for your business. The inclusion of 4 container locks allows for secure transport of a 20GP container, expanding its utility beyond bulk materials. The trailer features an 800mm side panel with an additional 600mm extra mesh front wall, providing flexibility for different types of cargo. Furthermore, our trailers are finished with two coats of anti-corrosion primer and a final coat of paint, with color options available to match your fleet’s branding.
Choosing our drawbar trailer means investing in a high-quality, long-lasting asset. We use premium components like Triangle brand 12.00R20 tires and 9.00*20 rims, ensuring reliable performance and reduced maintenance. The combination of a massive payload capacity and durable construction means fewer trips and lower operating costs for your business. Let our trailers be the backbone of your logistics operations, providing efficiency and reliability on every haul.
Ready to maximize your hauling potential? Contact us today for a free, no-obligation quote, and let’s discuss how our drawbar trailer can meet your specific business needs.
