Description
Our super link dropside trailers are engineered for maximum productivity, allowing you to transport more cargo in a single trip. Featuring a massive 60,000 kg payload and a versatile design, this trailer is the ideal choice for high-volume logistics and container transport.
Super Link Trailer Specifications
| Feature: | Carry 1X20FT、1X40FT、or 2X20FT container |

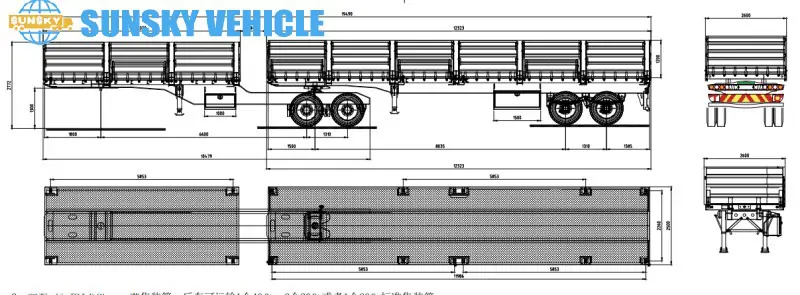

| Super Link Trailer Dimension: | 19500*2600*2700mm |
| Height of sidewall | 1200 mm, 3 mm thickness, Henred type, with grain windows |
| No. of axles: | 2 sets front + 2 sets back |
| Payload (kgs): | 60000 |
| Tare weight (kgs): | 11600 |
| Kingpin: | bolt-in type 2” |
| Landing gear: | JOST BRAND 19” |
| Tire size: | Triangle 315/80R22.5 |
| Rim size: | 9.00*22.5 |
| Axle: | BPW brand 12T*4 sets |
| Suspension | Airbag suspension |
| Container locks | 4 front + 12 back |
| Other: | With WABCO ABS |

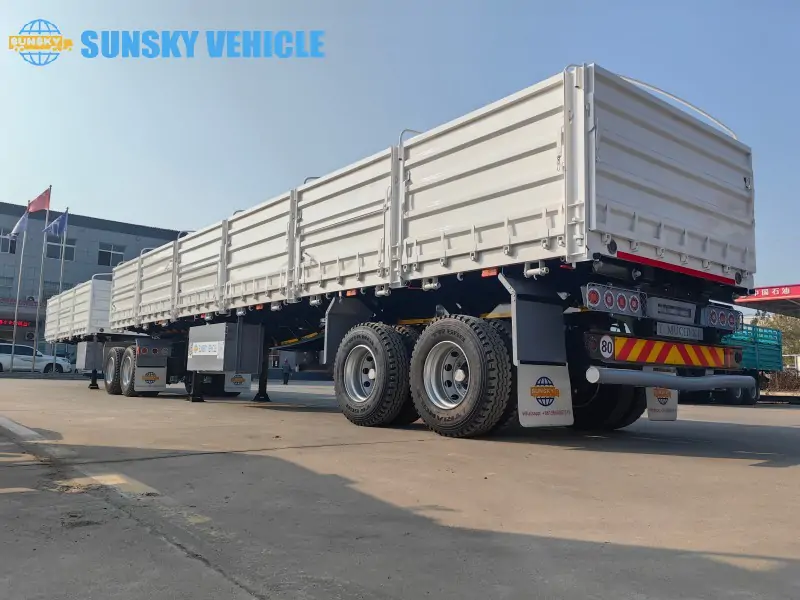

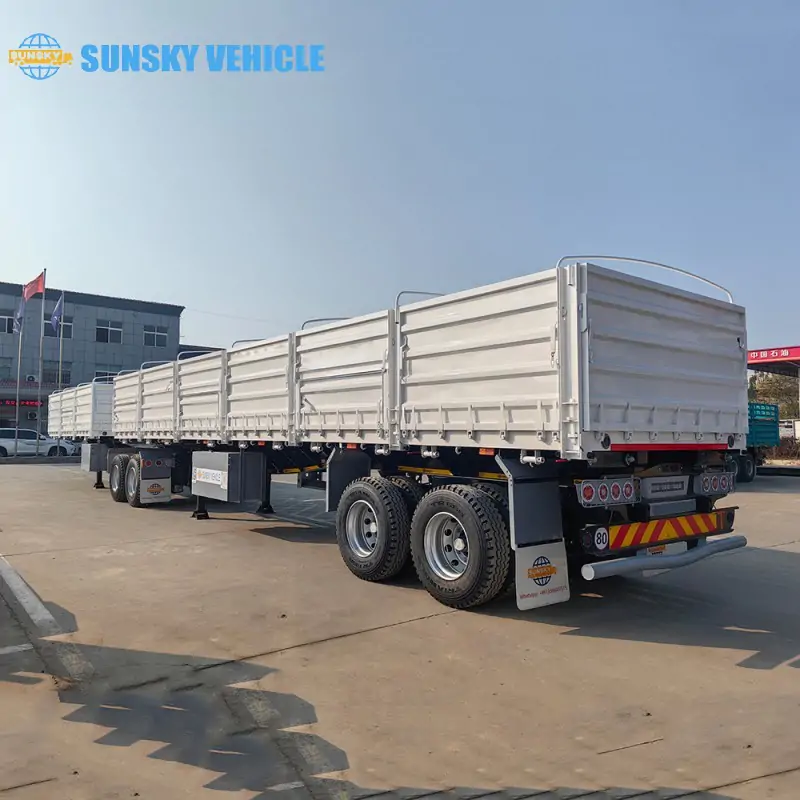

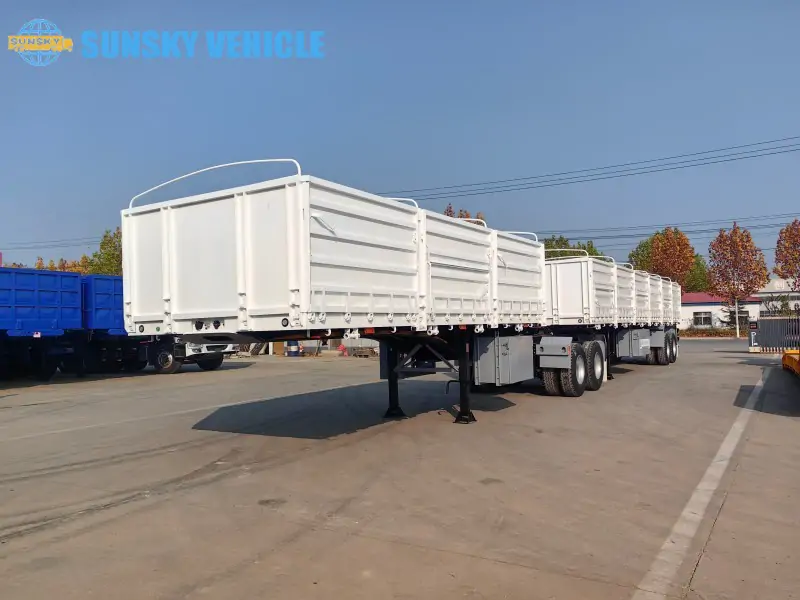

Super Link Trailer Image

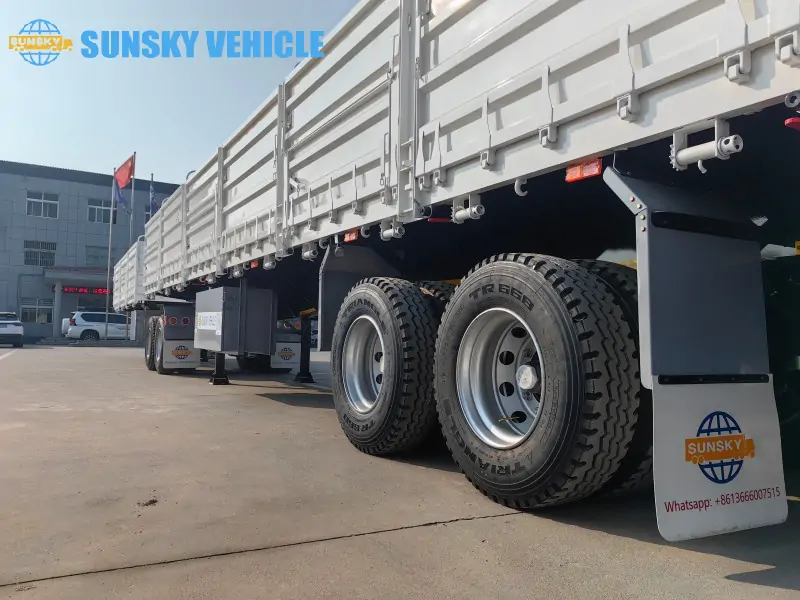

Super Link Trailer chassis

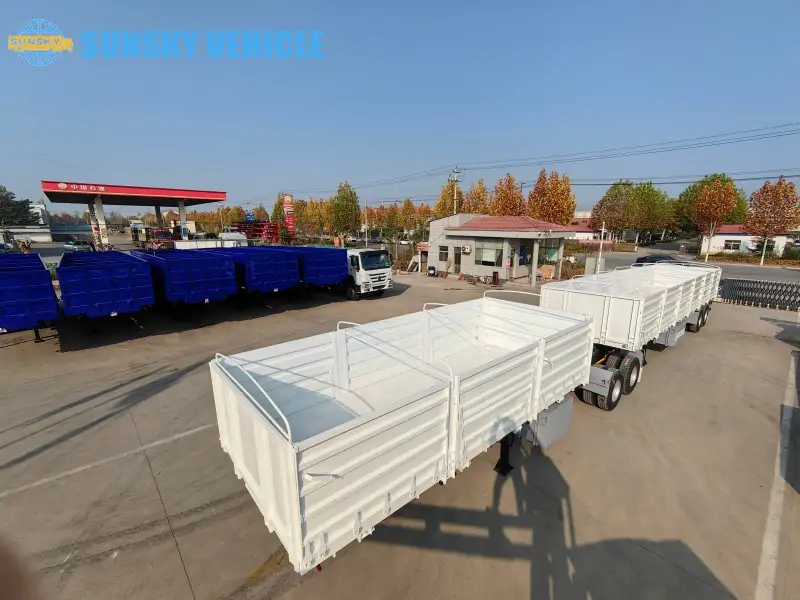

Super Link Trailer cargo box

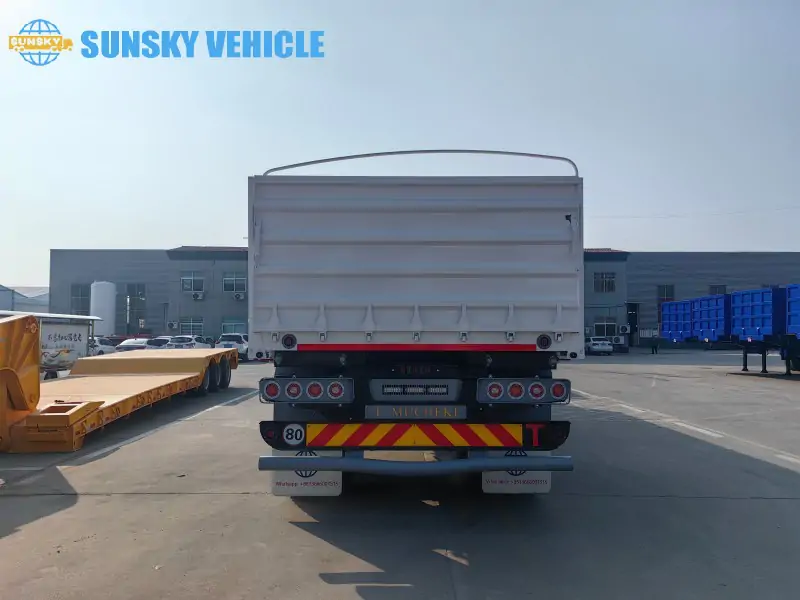

Super Link Trailer tail structure

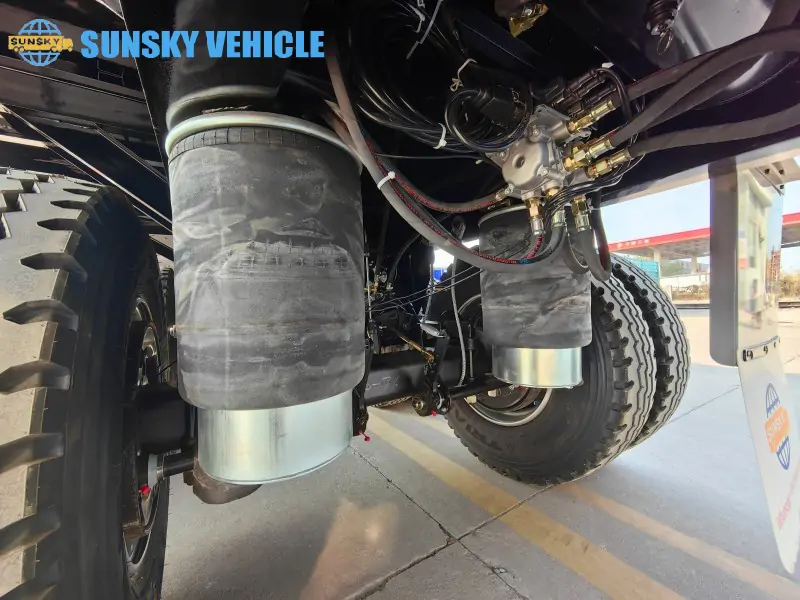

Super Link Trailer axle

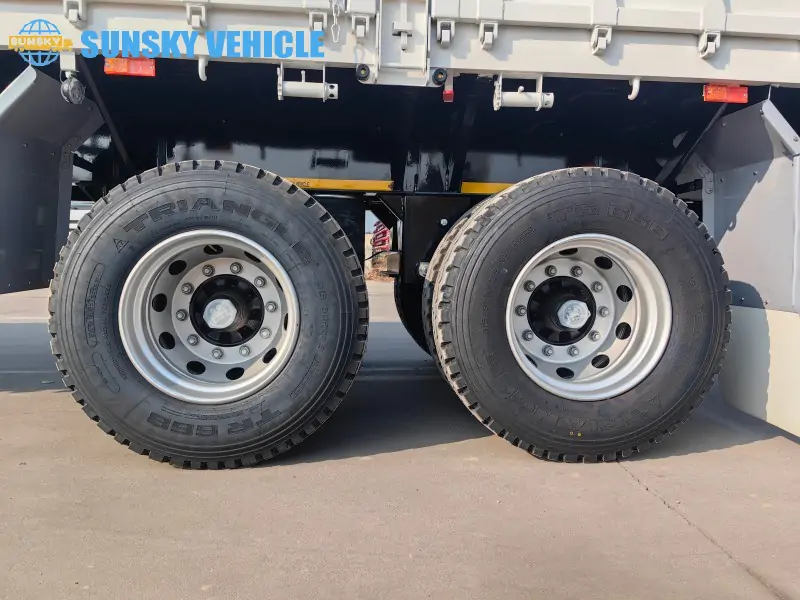

Super Link Trailer tire
Why Choose Our Super Link Trailer?
Unmatched Payload & Versatility with Our Super Link Trailer
Our 20 ft + 40 ft interlink dropside trailer is the ultimate solution for heavy-duty hauling. With a massive payload capacity of 60,000 kgs and a tare weight of 11,600 kgs, this trailer is designed to handle your toughest logistics challenges. Its versatile design allows for the transport of a single 20FT, a single 40FT, or two 20FT containers simultaneously. This flexibility makes it an invaluable asset for logistics companies looking to optimize their fleet and reduce operational costs.
Premium Components for a Reliable and Durable Interlink Trailer
We believe in using only the best components to ensure the reliability and longevity of our trailers. This super link trailer features four sets of genuine BPW brand 12-ton axles and a high-quality airbag suspension system, providing a smooth and stable ride even under heavy loads. The trailer is equipped with a bolt-in type 2″ kingpin and a trusted JOST brand 19″ landing gear for secure and easy handling. Safety is further enhanced by the inclusion of a WABCO ABS braking system, giving drivers superior control and peace of mind.
Dropside and Container Transport Features of Our Superlink Trailer
The dropside feature of our trailer adds another layer of functionality, making it easy to load and unload various types of cargo. The sidewalls are 1200mm high with a 3mm thickness and are of the durable Henred type, complete with convenient grain windows. For secure container transport, the trailer is fitted with 4 container locks on the front unit and 12 on the back unit, ensuring your containers are firmly in place during transit. This dual-purpose design makes our superlink trailer an all-in-one solution for both container and bulk cargo logistics.
Ready to maximize your hauling efficiency? Get in touch with us today for a free, personalized quote and find out how our high-capacity super link trailer can transform your business.
