Name: 40FT Chassis Trailer
Price: 9800
Availability: InStock

Description

Our multi-purpose dropside trailer is the perfect combination of a flatbed and a side-wall trailer. It’s expertly designed to handle container transport and a wide variety of bulk cargo, offering unmatched flexibility and efficiency for your operations.

Trailer with Drop Sides Specifications

Feature:	Carry bulk cargo
Trailer with Drop Sides Dimension:	Approx. 1250026002700mm
Height of sideboard	1200 mm, with grain windows
Payload (kgs):	40000
Tare weight (kgs):	Approx. 8500
Kingpin:	Bolt-on type 2’’ or 3.5’’
Landing gear:	Two-speed manual operation 19”
Tire size:	315/80R22.5
Rim size:	9.00*22.5
Axle:	3 Axles, 13 Tons
Suspension	Spring suspension
Brake system:	Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank

Trailer with Drop Sides Image

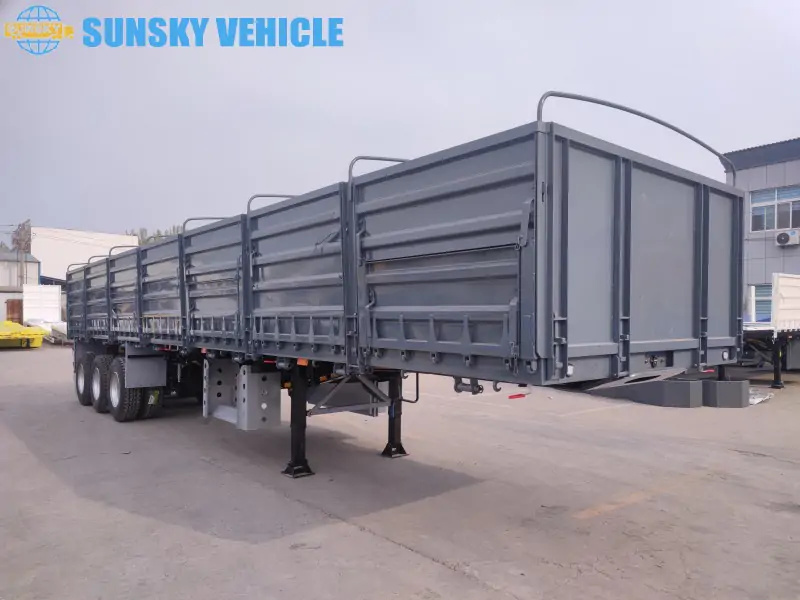

Trailer with Drop Sides side view

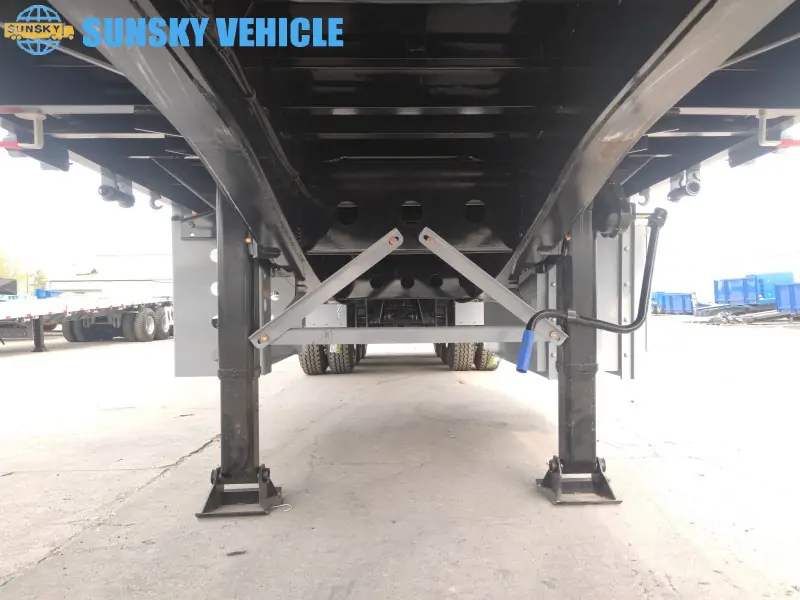

Trailer with Drop Sides chassis

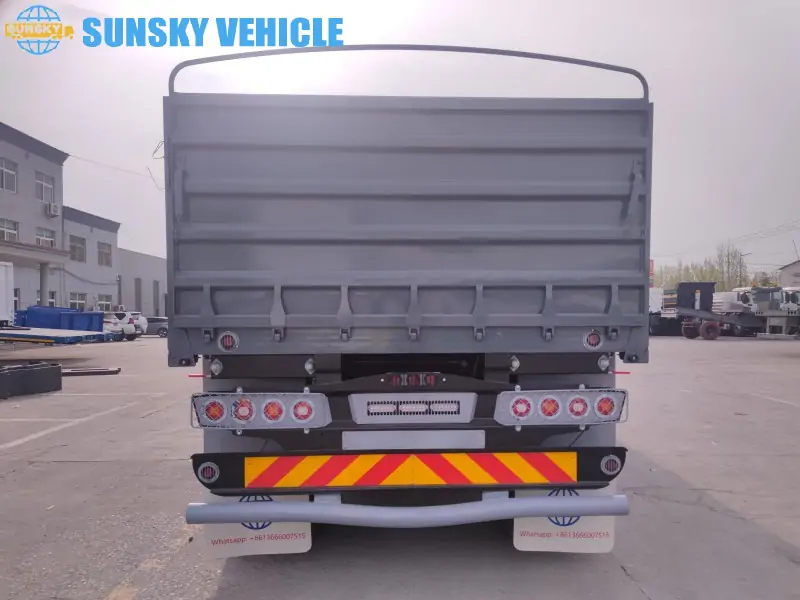

Trailer with Drop Sides tail structure

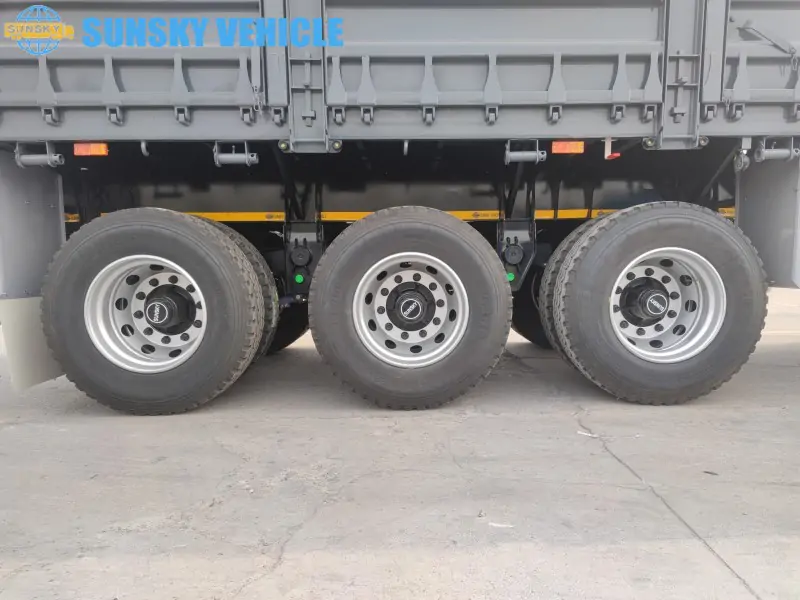

Trailer with Drop Sides tire and suspension

Why Choose Our Trailer with Drop Sides？

Unmatched Versatility: Your Solution for a Trailer with Drop Sides
Why invest in two different trailers when one can do it all? Our multi-purpose dropside semi-trailer provides the perfect solution, acting as a true multi-tasker for your hauling needs. Equipped with 12 robust container locks, it can safely and securely transport 1×40 ft, 2×20 ft, or 1×20 ft containers. At the same time, its sturdy 1200 mm high side walls and integrated “grain doors” make it the ideal choice for bulk cargo like grains and sand. This “two-in-one” advantage is designed to save you costs and boost your operational efficiency.

Engineered for Durability: The Core of Our Dropside Trailer
We know that durability is non-negotiable for your business. That’s why our dropside trailer’s main frame is built with a heavy-duty, extra-durable design. We opt for high-tensile, low-carbon alloy Q345B steel, a material renowned for its strength and resilience. The I-beam is meticulously welded by an automotive arc-submerge process, ensuring the chassis can withstand the rigorous demands of heavy-duty transport. With a high payload of 40,000 kgs and a light tare weight of just 8,500 kgs, it provides an excellent balance of load capacity and efficiency.

Superior Components for Reliable Performance
Reliability is the foundation of every successful hauling job. Our dropside trailer is equipped with premium components to ensure stable and smooth transport. It features three high-quality 13-ton axles and a spring suspension system with 8 leaf springs, providing superior load-bearing capacity and stability. The dual-line brake system, coupled with an Re-6 emergency relay valve and T30/30 air chambers, provides robust and dependable stopping power, ensuring safety on every journey.

Trailer with Drop Sides draw

40ft-chassis-trailer-draw

Ready to simplify your fleet and maximize your hauling capacity?

Choose our dropside semi-trailer—the versatile, durable, and efficient solution that works as hard as you do.

Contact our experts today for a personalized quote and discover how this all-in-one trailer can transform your logistics.

Video of drop side trailer

1. What is a drop-side trailer, and what makes it different from a flatbed trailer?
A drop side trailer, also known as a side wall trailer or sideboard semi-trailer, is a type of semi-trailer characterized by its removable or collapsible side panels. The primary difference from a standard flatbed is its enhanced versatility. While a flatbed trailer is only suitable for carrying large, single items that can be strapped down, a drop-side trailer can easily be converted. With the side walls and tailgate in place, it can securely transport bulk cargo like bags of cement, grain, or sand. By dropping or removing the side walls, it transforms into a flatbed trailer, allowing for the easy loading and transport of oversized goods and equipment from the side. This versatility makes the drop side semi-trailer a highly adaptable asset for a wide range of industries.

2. What types of cargo are best suited for a drop-side trailer?
The design of a drop-side trailer makes it ideal for a diverse range of cargo types, especially those that benefit from containment during transport. It is best suited for:
Bulk Cargo: Items like sacks of grain, fertilizer, or cement, where the side walls prevent the load from shifting or falling off.
Construction Materials: Pallets of bricks, stones, steel bars, or bagged materials that need to be contained but also require easy access for loading and unloading with a forklift from the side.
General Freight: Assorted goods, boxes, and smaller equipment that are difficult to secure on a flatbed alone.
Agricultural Goods: Bales of hay or other farm produce can be stacked efficiently and contained by the side walls.
The drop side semi-trailer’s ability to transition between a contained and an open platform makes it a cost-effective solution for fleets that haul various types of goods.

3. What key features should I look for to ensure a drop-side trailer is durable and safe?
To ensure your drop-side trailer is durable and safe for the long term, you should pay close attention to its construction and components.
Frame Material: Look for a robust main frame built from high-tensile steel, which provides superior strength and resistance to bending under heavy and uneven loads.
Side Wall Construction: The side panels should be made of durable steel with strong, reliable locking mechanisms that prevent accidental release during transit. The taller the side walls, the more bulk cargo you can contain.
Axles and Suspension: A high-quality suspension system (e.g., a multi-leaf spring system) and reliable axles are crucial for handling heavy payloads and providing a stable ride.
Braking System: A modern braking system with ABS (Anti-lock Braking System) is essential for safety, providing superior control and preventing skidding in emergency situations.
These features ensure that the side wall trailer can withstand daily heavy use and provide a secure platform for your cargo.

4. Can a drop-side trailer be customized?
Yes, Drop Side Trailers are one of the most customizable types of semi-trailers. While standard models are available, they can often be tailored to meet specific operational needs. Common customization options include:
Side Wall Height: The height of the side walls can be adjusted to accommodate different types of bulk cargo.
Axle Configuration: You can choose the number of axles (e.g., 2-axle, 3-axle, 4-axle) based on your regional weight regulations and payload requirements.
Suspension Type: While mechanical spring suspension is common, you can opt for an air suspension system for a smoother ride, which is better for delicate cargo.
Material and Finish: The type of steel and the paint/coating can be customized for specific environmental conditions to enhance corrosion resistance and longevity.
